VMware vRealize Automation: Virtual Machine’s Resource Settings

After create Virtual machine in VRA now we will see how to Edit or Modify a Virtual Machine’s Resource Settings.

1. First login into Business-admin

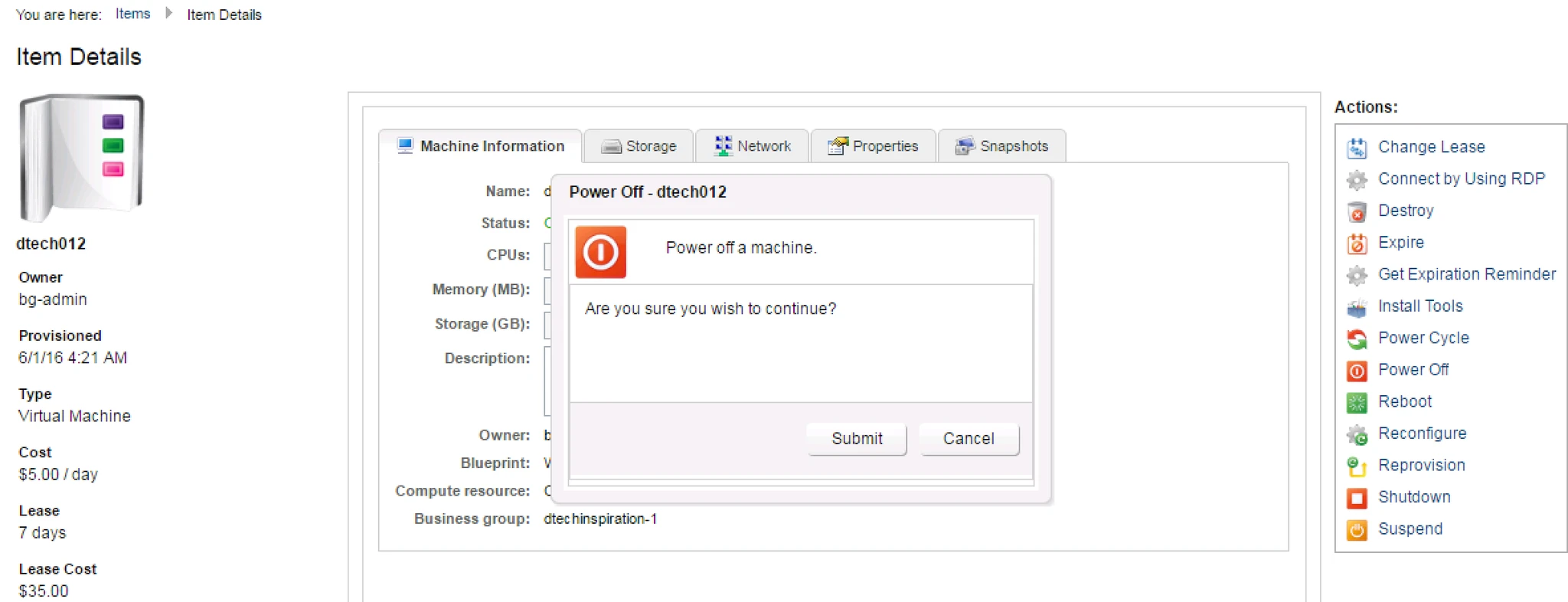

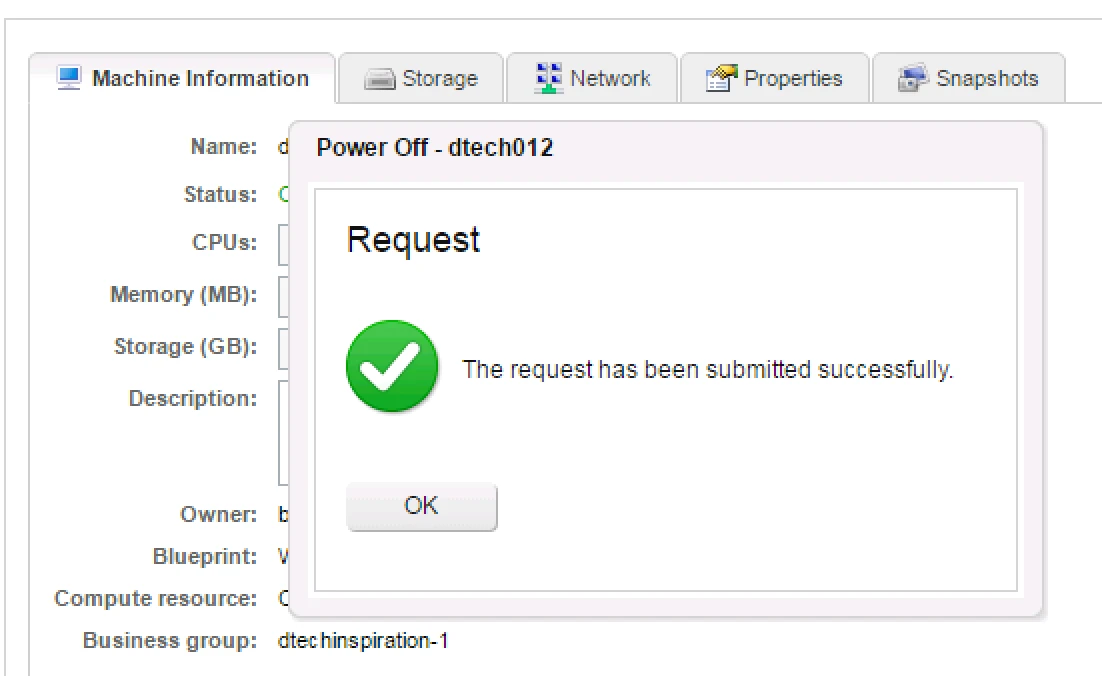

2. After that make sure your Virtual machine is Powered Off, How, right click on your VM and Select Power Off option.



3. It will take some time to power off. Till the time it is not fully powered off it will not highlight RAM, CPU edit options.

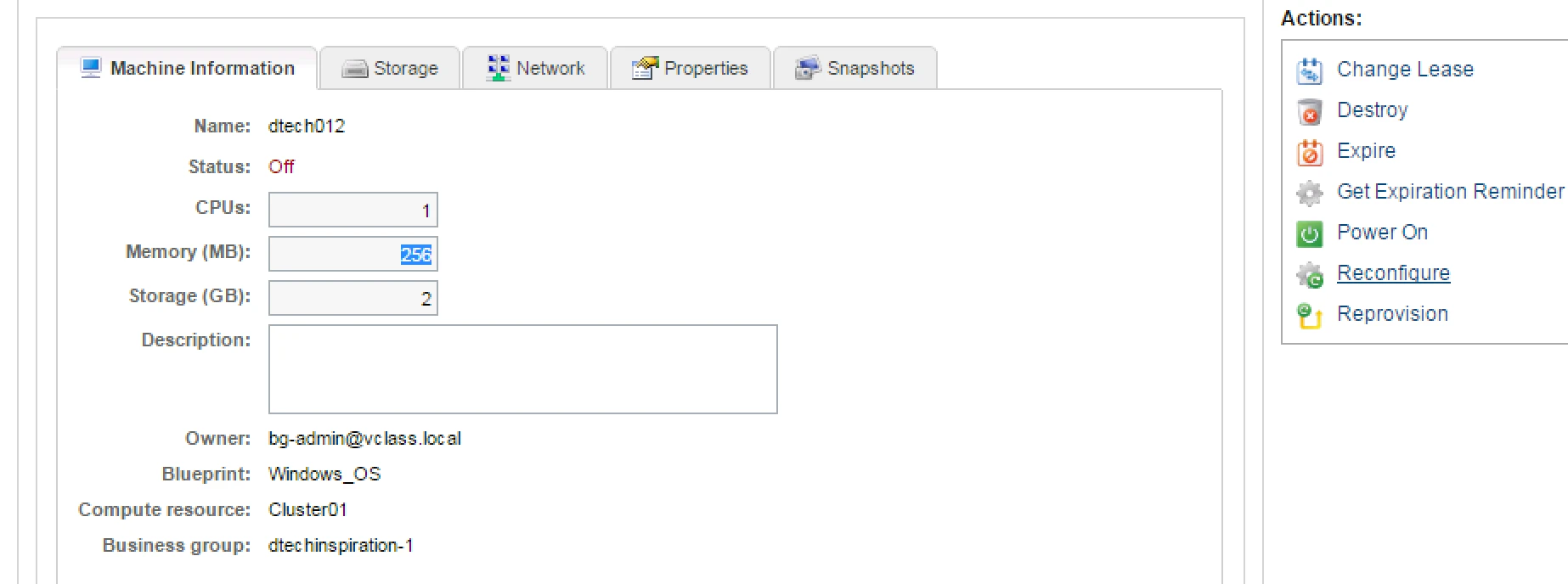

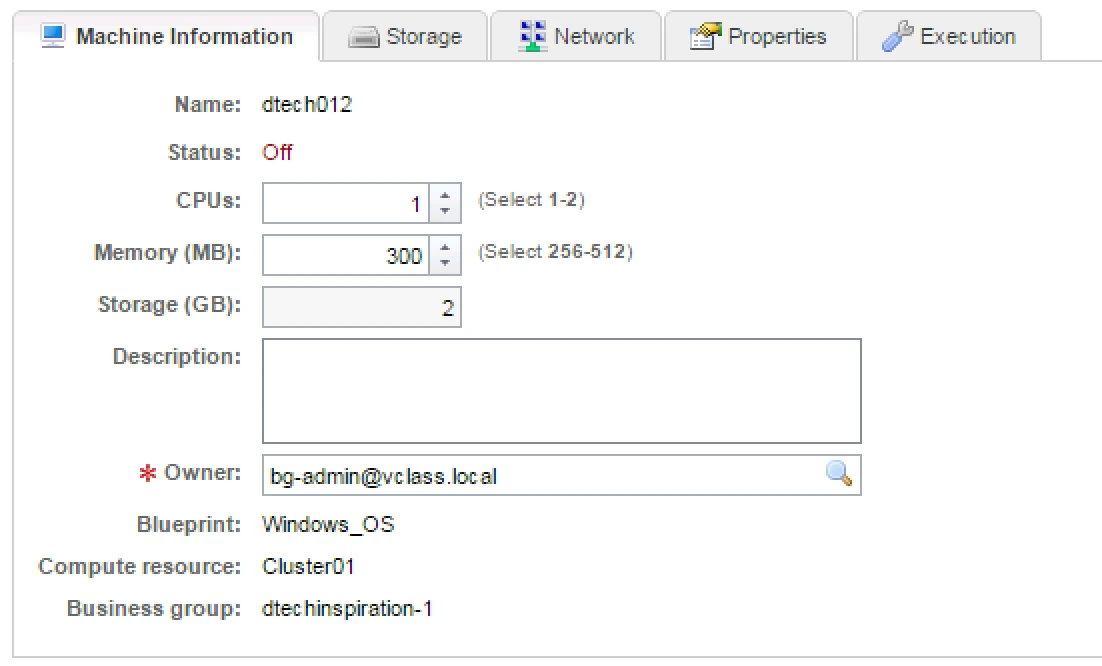

4. Once it is ready then you can see RAM, CPU options are highlighted.

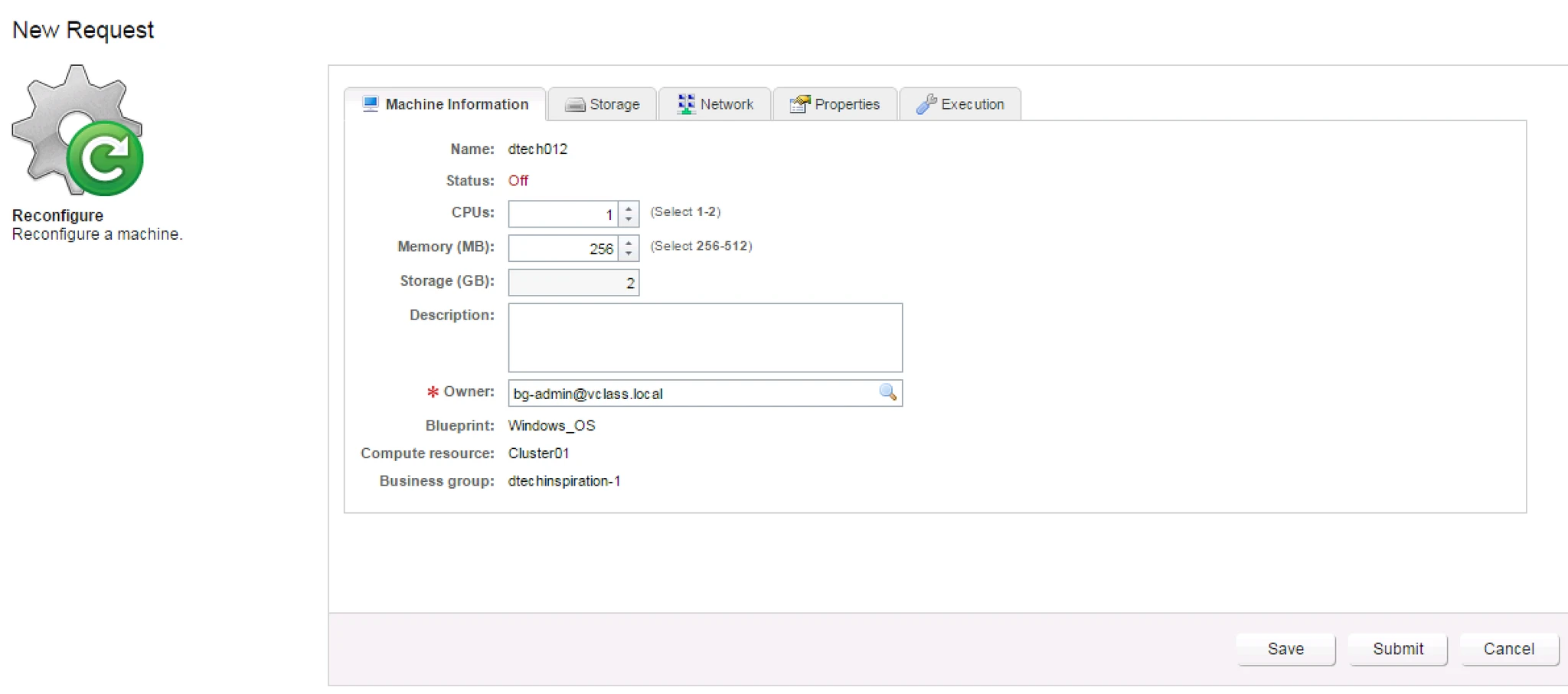

5. Here you have to provide CPU and Memory value which you want to increase.

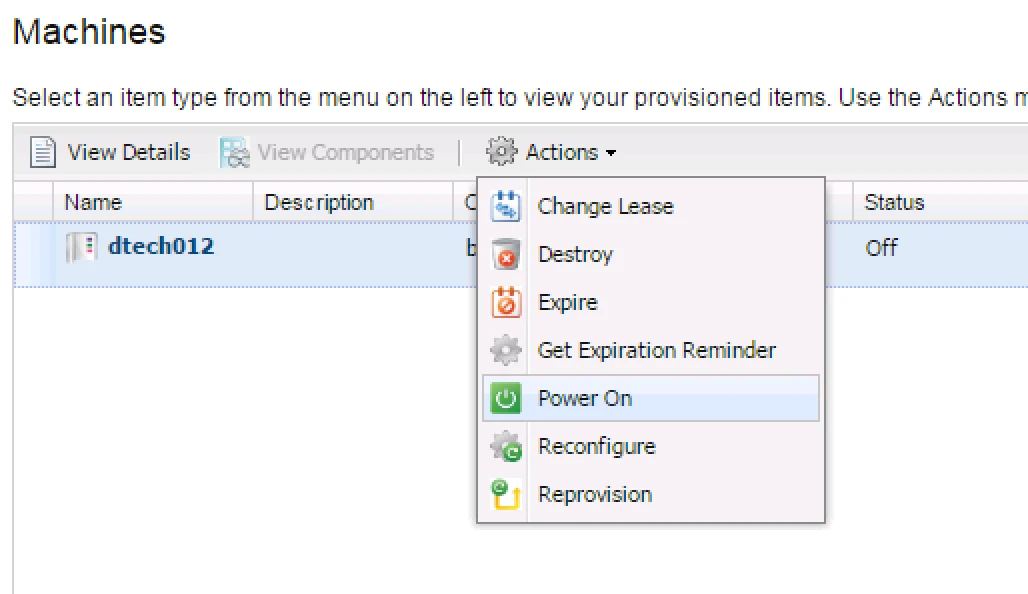

6. Then power On the Virtual Machine.

0

VMware vRealize Automation: Create and Delete Snapshots

Today We will see how to Create and Delete Snapshots in VMware vRealize Automation.

1. You have to login via Business Group administrator

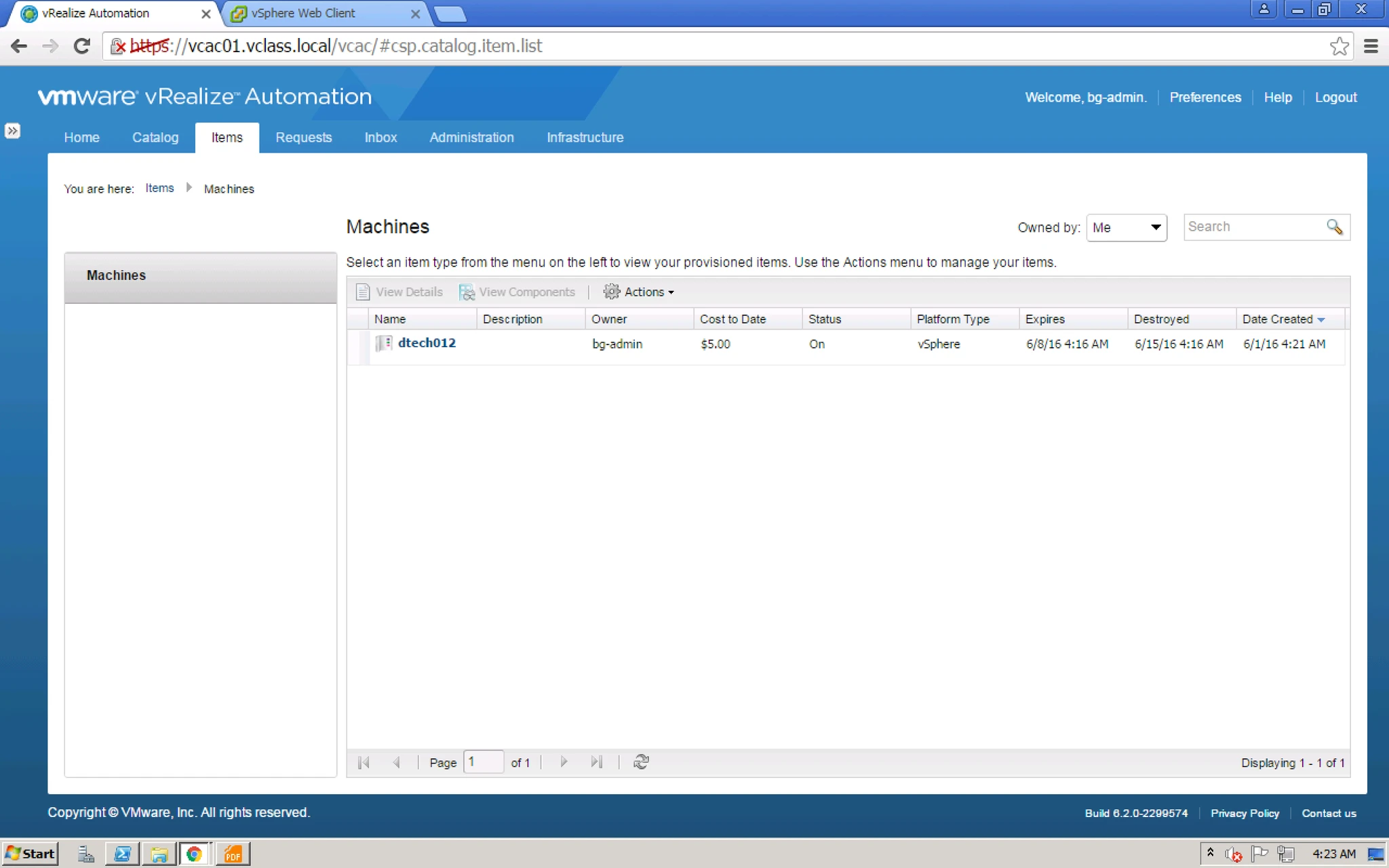

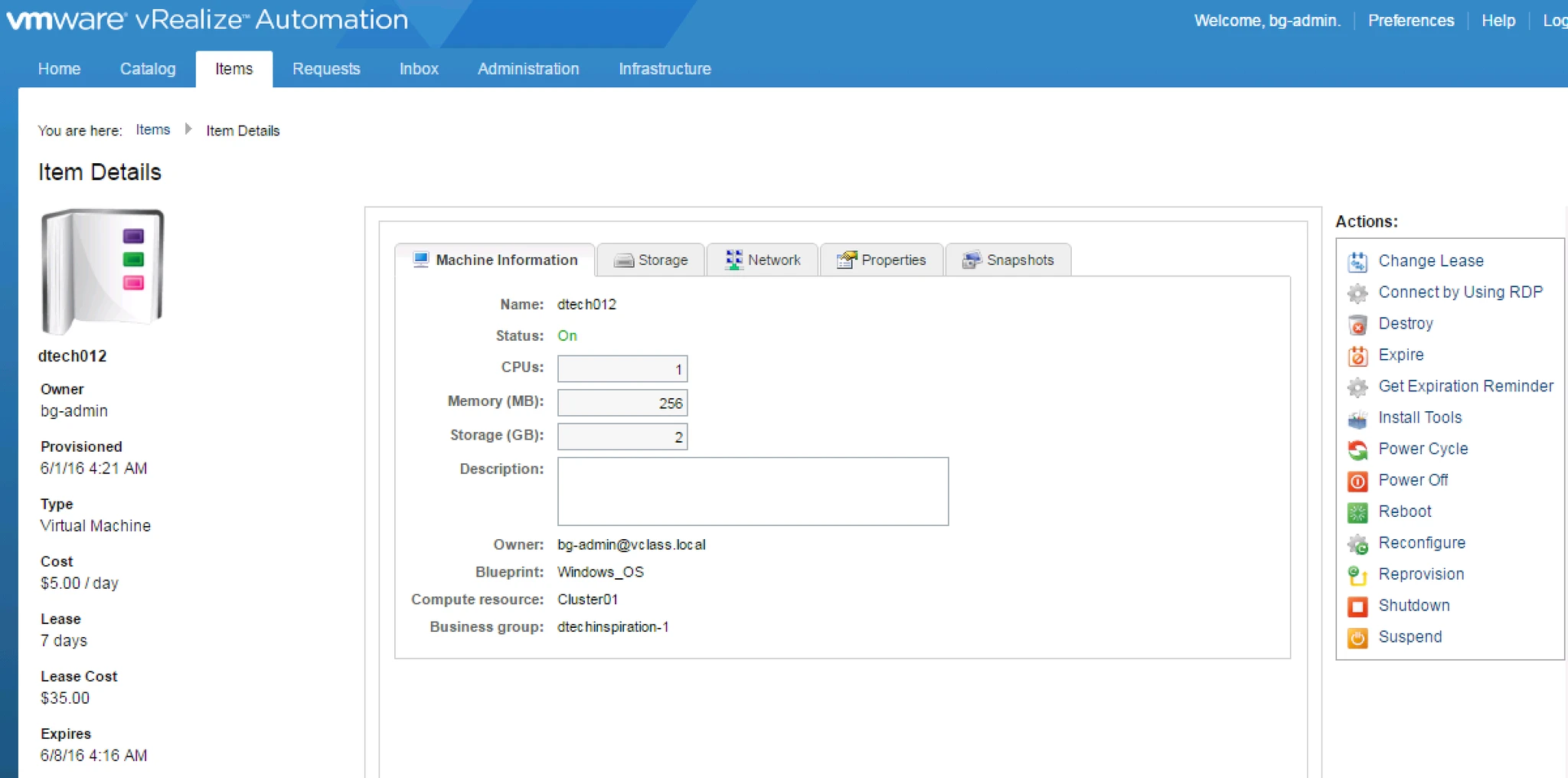

2. After login you will be able see your machine and all the details related to it.

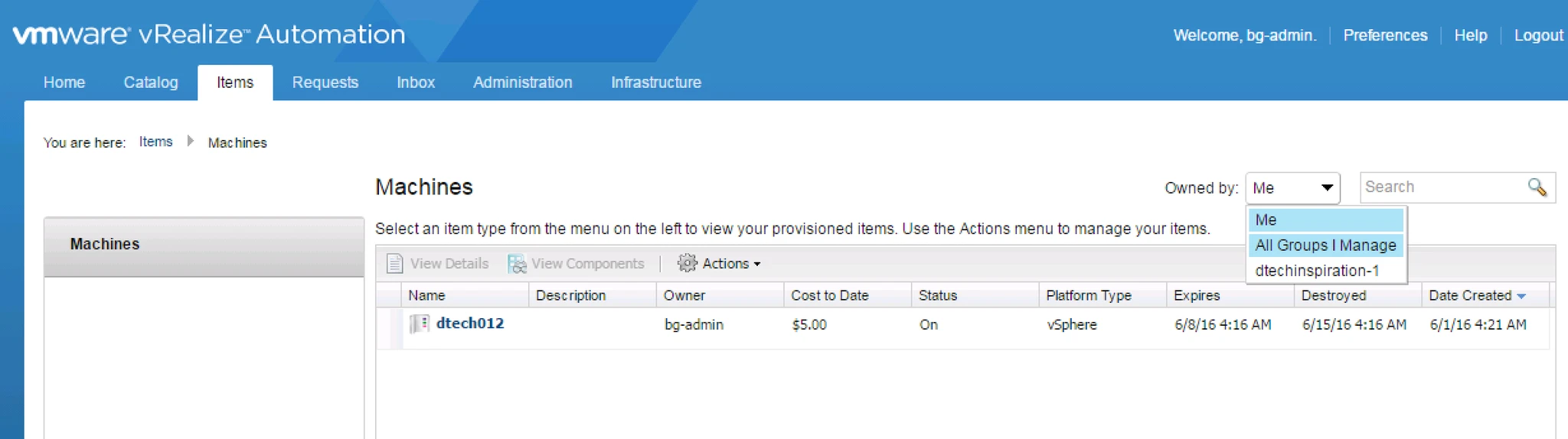

3. After that you have to check that how many machines are owned by you by clicking drop down menu which is on the very right hand side “Owned by”.



4. After that go to Actions > you will get further options releated to VM like a. Connect by Using RDP b. Destroy c. Power off etc. If you double click then these options will be listed down on the right hand side as seen in the second picture.



5. Go to the Last Tab Snapshot and Click on the New Snapshot.

Then it will ask you to provide Name of that snapshot.

Note: Same concept of Snapshot which we know in vSphere environment. here it will also ask you to take snapshot with memory or without.

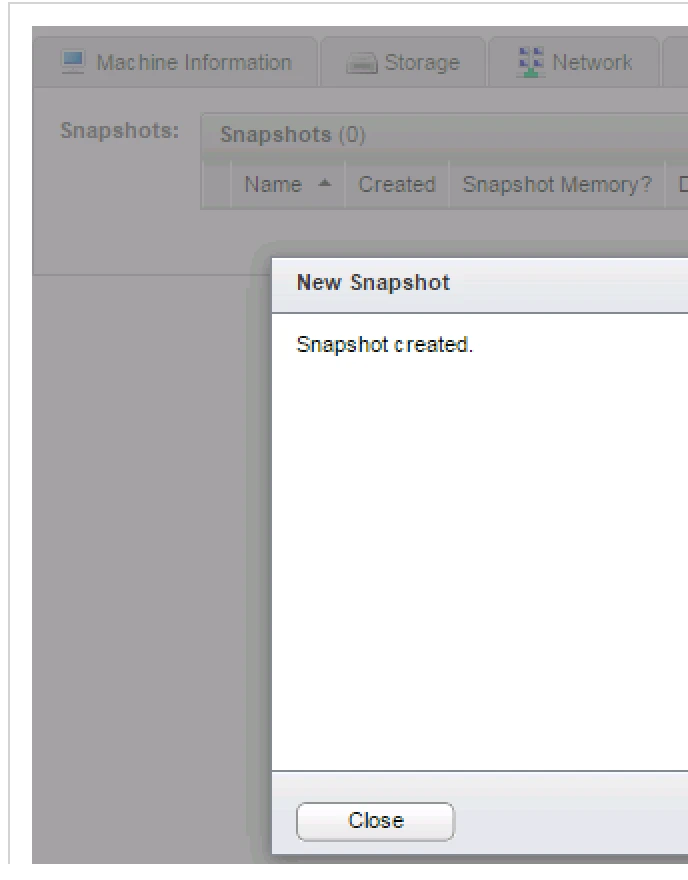

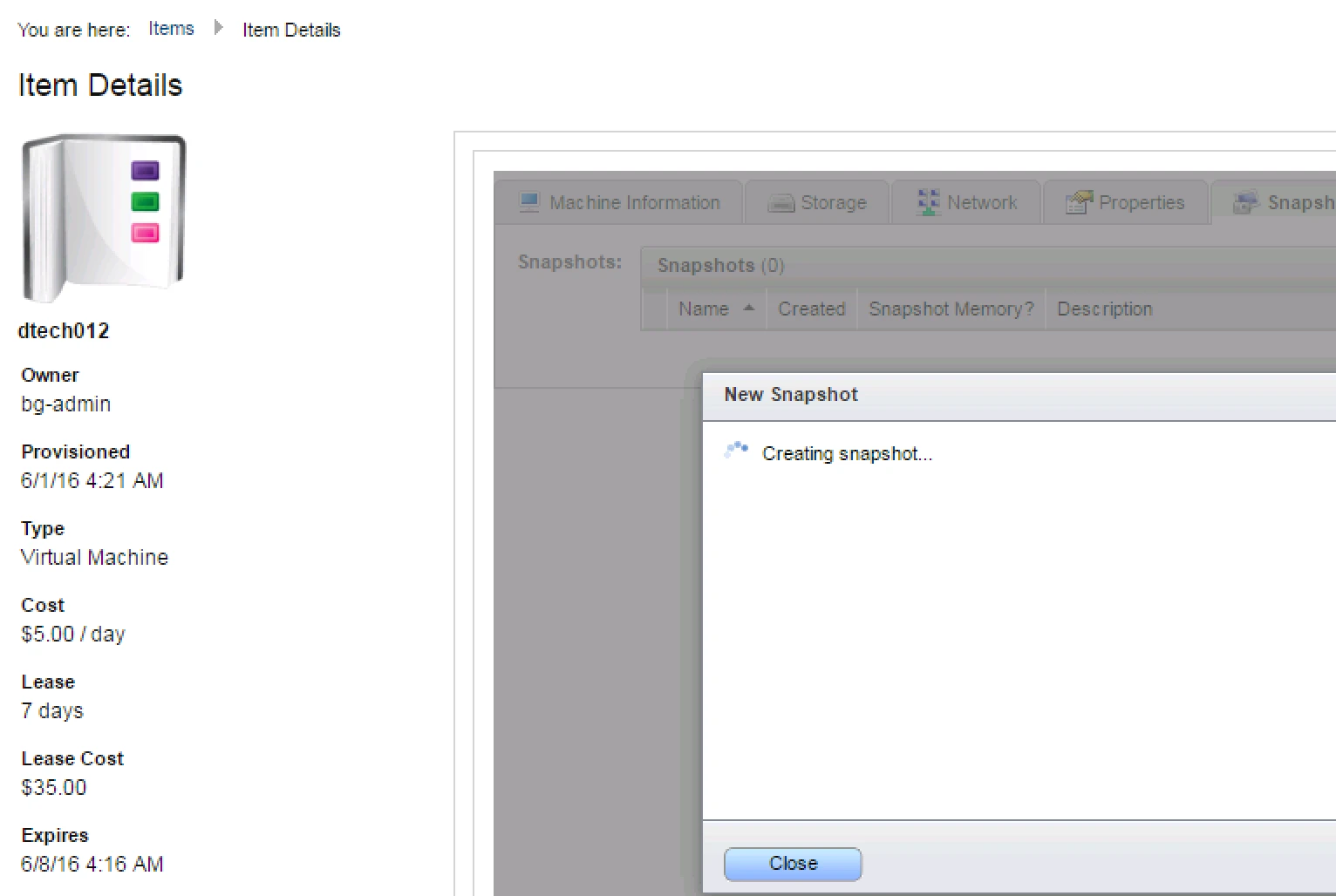

6. After that it will start taking snapshot and once it’s is finished it will show you the status.

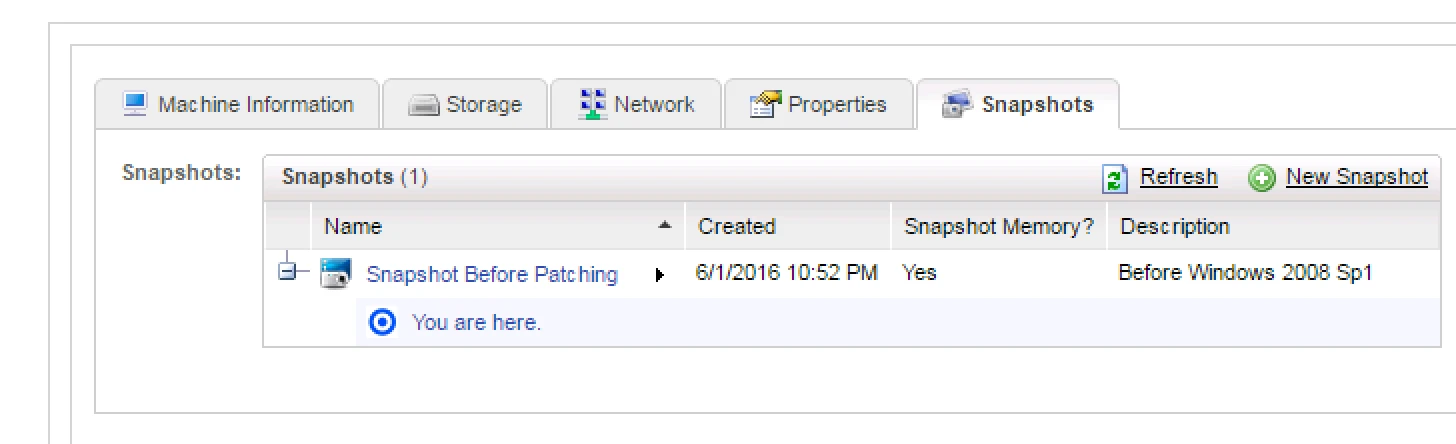

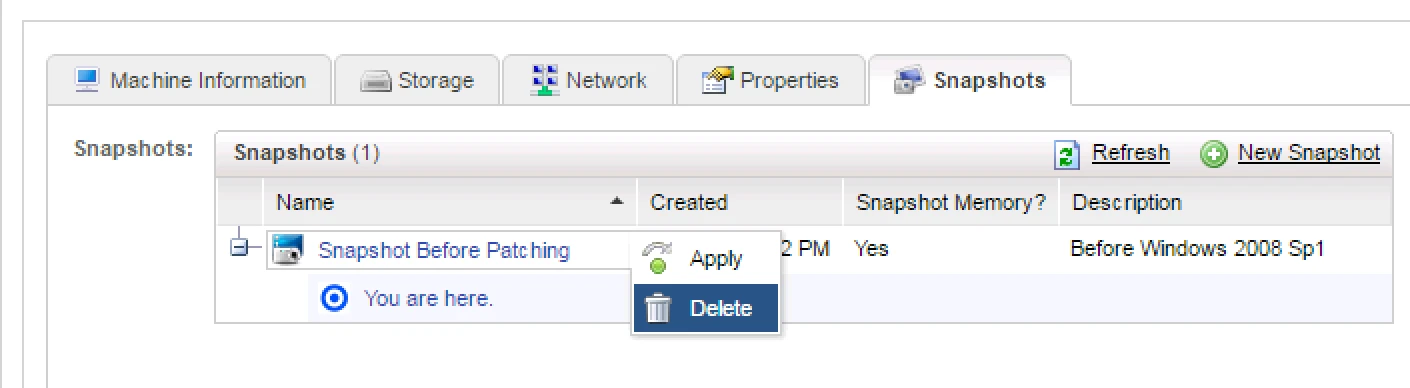

Now here you will see one snapshot which we have taken.

7. If you want to delete this snapshot then simply right click on this snapshot and Delete the same.

0

VMware vRealize Automation: Deploy Virtual Machine

As of now we have done VRA appliance setup, Fabric layer setup, Blueprint creation and Service entitlement.

Now we will See how to Create/Deploy Virtual Machine using Service Catalog which we have created in previous Blog.
1. Login with bg-user@vclass.local URL : http://IP-or-FQDN/vcac

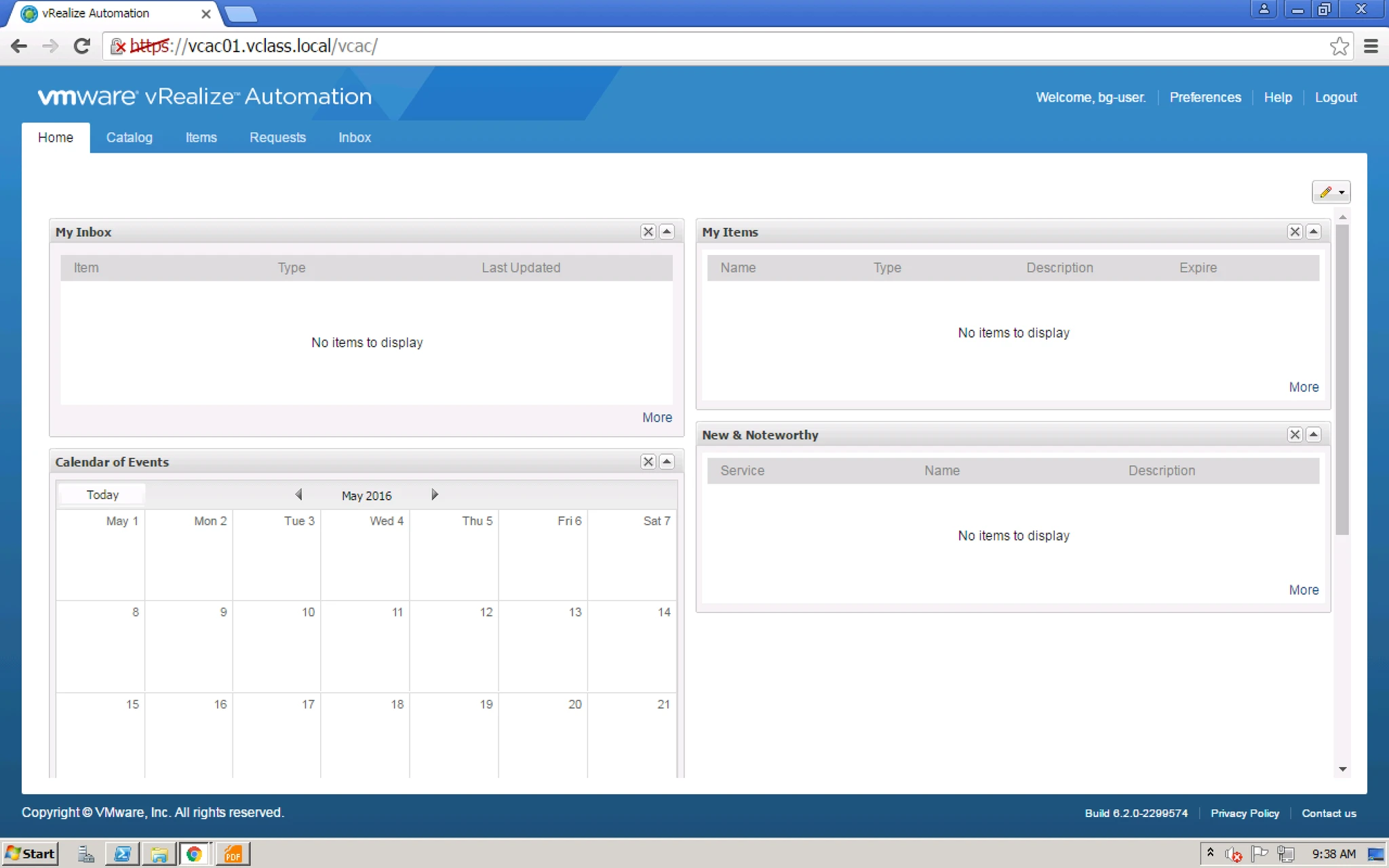

2. After login this is First Screen you will See.

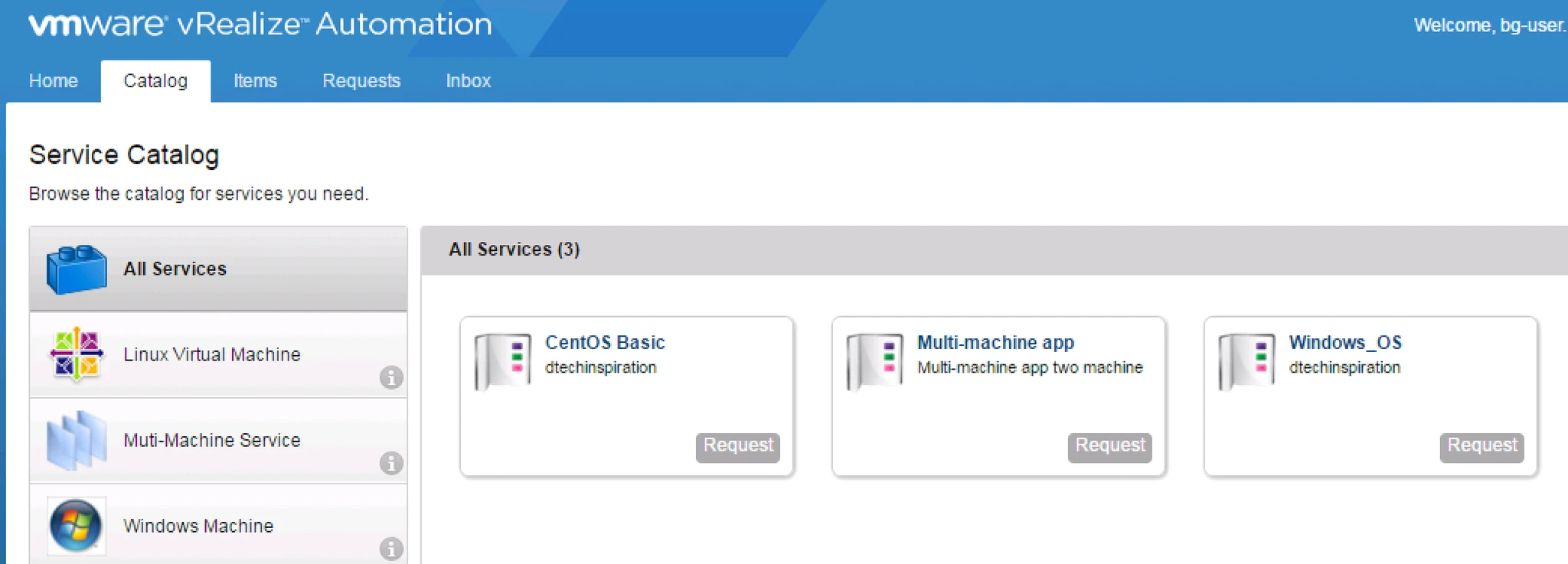

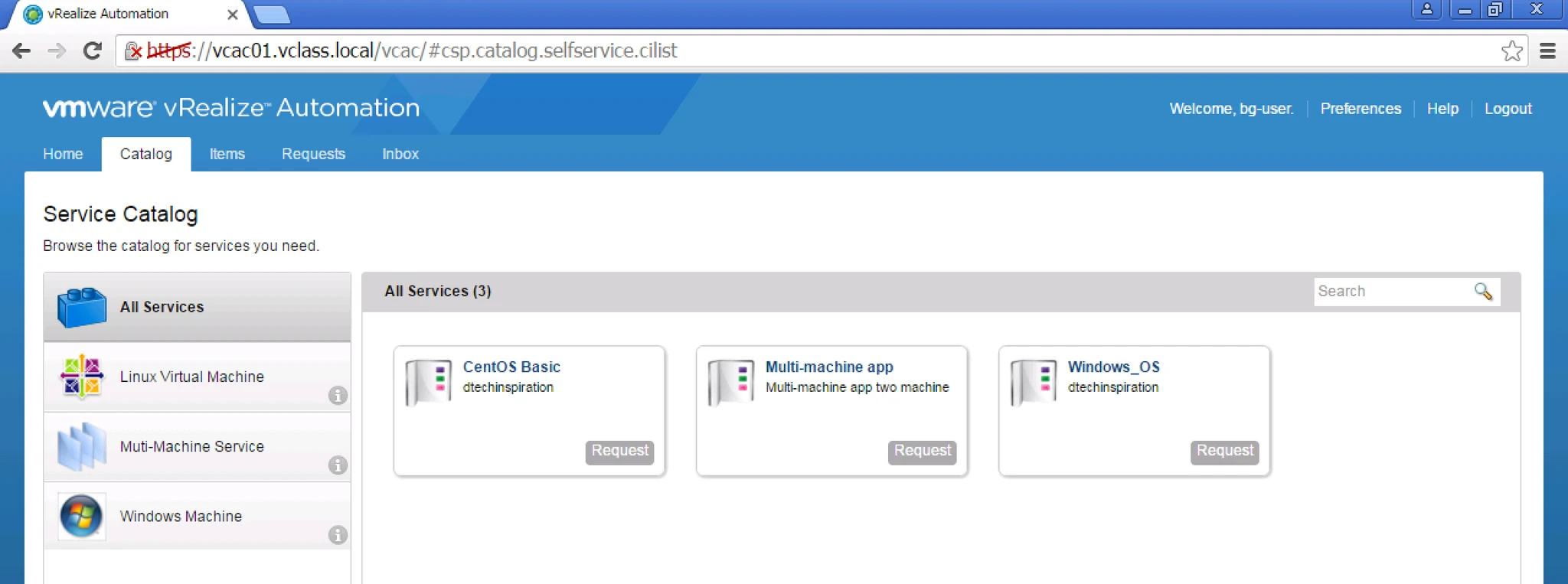

3. Click on the Catalog ( top ) and under that you will see Service Catalog which you have created like

a). Linux Virtual Machine
b). Windows Machine
c). Multi-Machine Service etc.

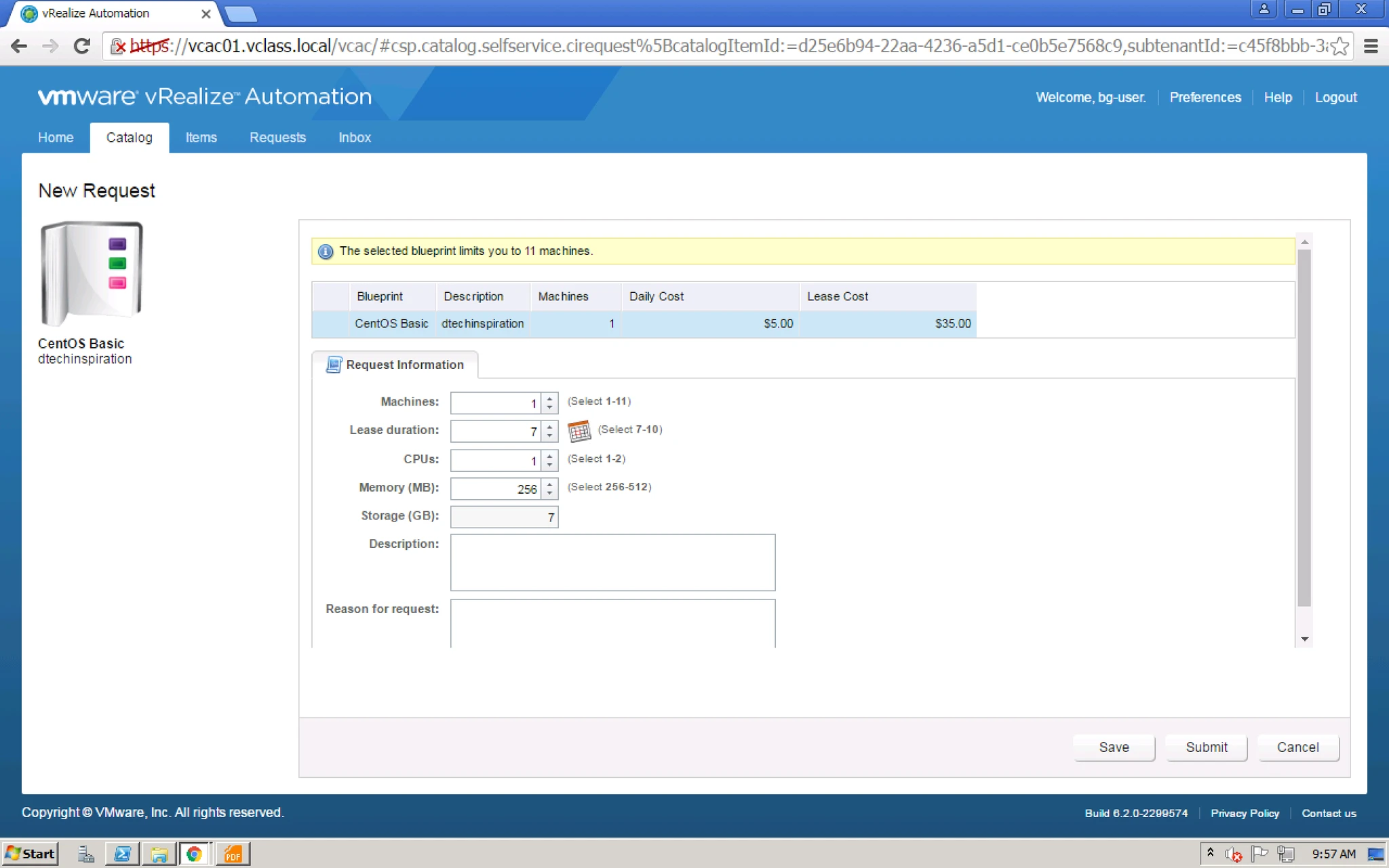

4. Now Select the Catalog and click on Request > after that it will ask you to provide Some information like

a). How many Machine
b). Lease duration
c). CPU
d). Memory
e). Storage etc…

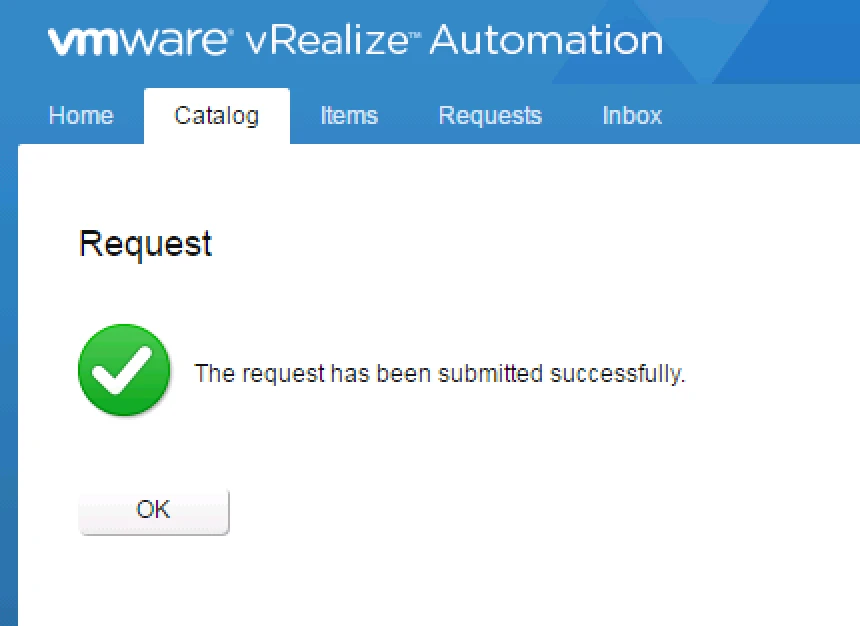

You will get Request Successful status.

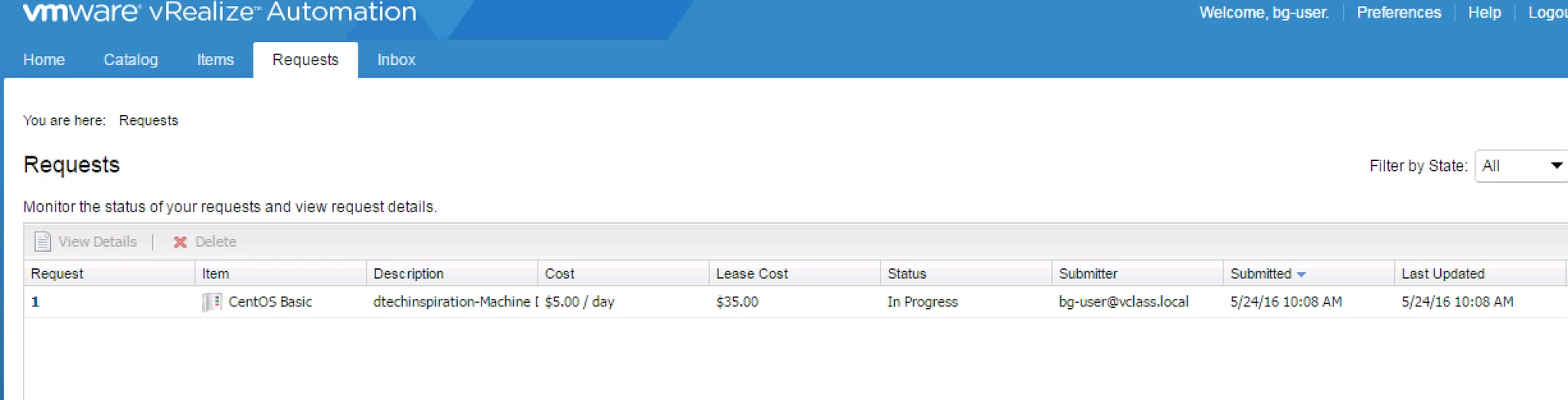

If you want to check the progress of your virtual machine then go to Requests Tab and here you will get information of virtual machine request.

0

vRealize Automation and NSX – Better Together

#vRealize Automation and #NSX – Better Together

vRealize Automation and NSX – Better Together

One of the hottest topics in the world of software-defined everything is unequivocally NSX. This rocketship of a technology is fundamentally changing datacenter design — much like vSphere so effectively did (except at a greater pace). NSX redefines how networks are built, consumed, and managed. Even more importantly, security no longer has to be compromised due to the the prohibitive cost of per-application policies. And best of all, this all done with software. That’s a good thing since we’re at the start of a software-defined revolution, quickly breaking out of our hardware-defined chains.


VMware Social Media Advocacy

0

vRealize Business for Cloud 7.0.1 -…

#vRealize Business for Cloud 7.0.1 – Installation and configuration

vRealize Business for Cloud 7.0.1 -…

vRealize Business has been around for a while, but i tend to find that people either don’t really know much about it, or those who have bought it as part of vCloud Suite rarely implement it, and thats a real shame because with very little time and effort you can get some really useful information out of it. So, i’m going to attempt to show you in this article how to deploy it and configure it.


VMware Social Media Advocacy

0

VMware vRealize Automation: Service Catalog & Entitlement

What is Service Catalog in vRealize Automation.

The service catalog is a self-service portal where users can browse and request items that they need like Virtual Machine, Machine on AWS or it could be on physical box and many more, track their requests, and manage their provisioned items.


Let’s See how to create Service Catalog then we will see how to create vm by using Service Catalog.

1. Login into URL: http://IP-or-FQDN/vcac with tenant-admin@vclass.local

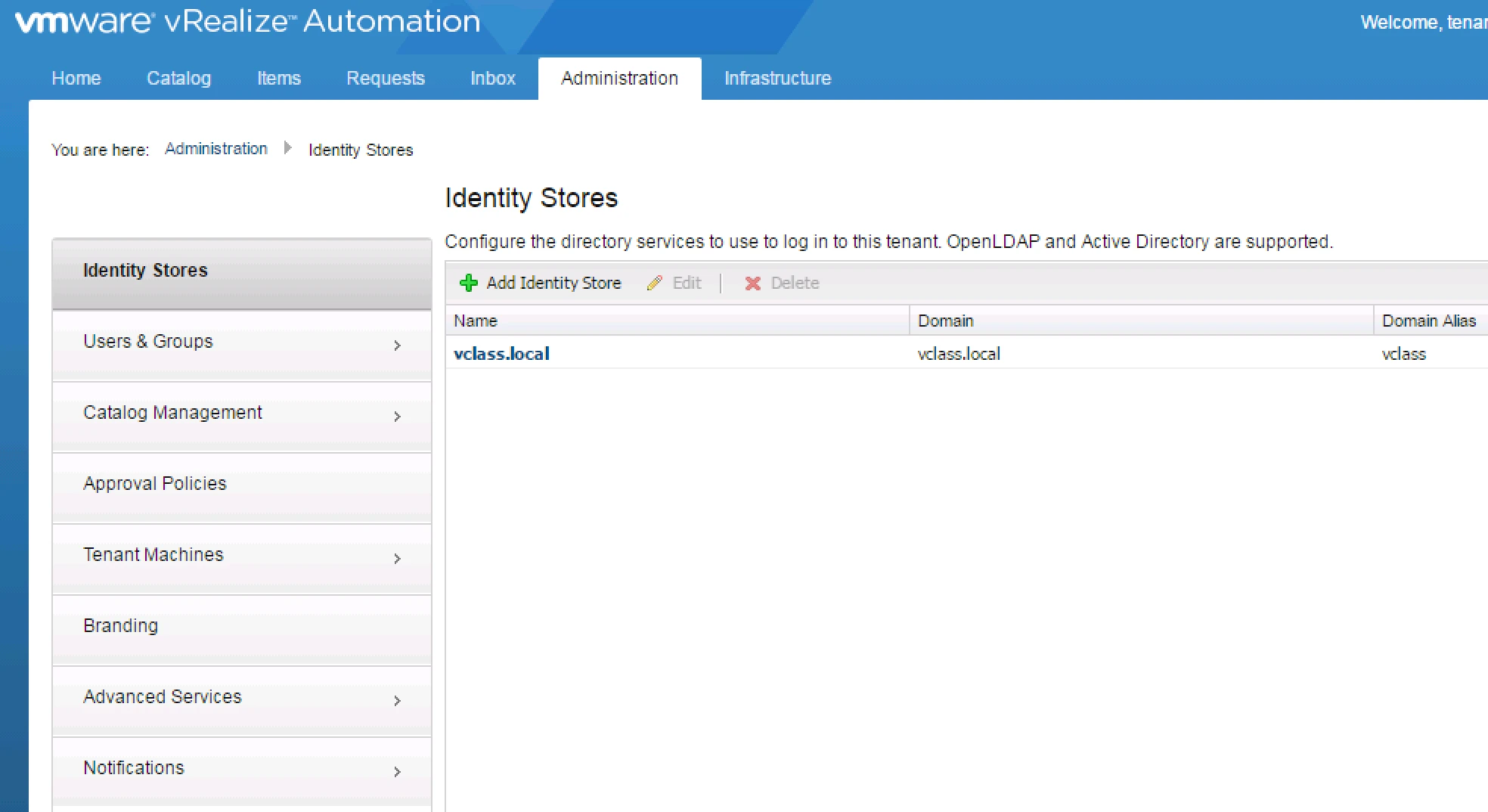

Here in Administrator Tab you can See Catalog Management click on that.

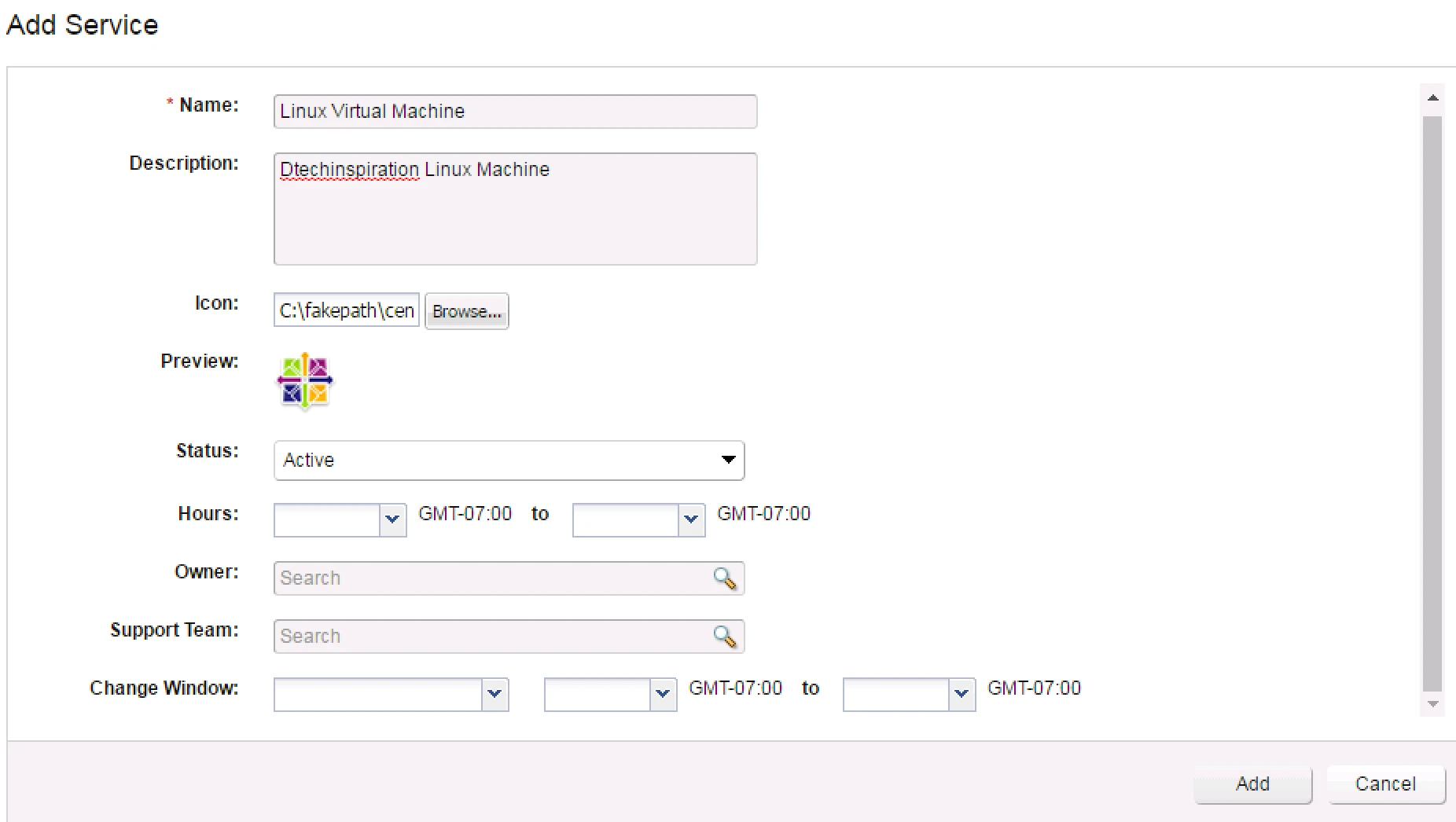

2. Click on the New Catalog and provide Details for this Catalog like.

a). Name : it could be Linux virtual machine or Windows Machine.
b). Description: Linux or CentOS
c). Icon: download the icon from internet and browse the same and select as per Name. it will help user to identify easily which OS the are provisioning
d). Status : make it as Active
e). Rest: if you want to provide Details then click ok


3. Once you are done with Service catalog it will shown in the list now click on that Name. on the Right hand side you will see Manage Catalog Items will be active click on it.

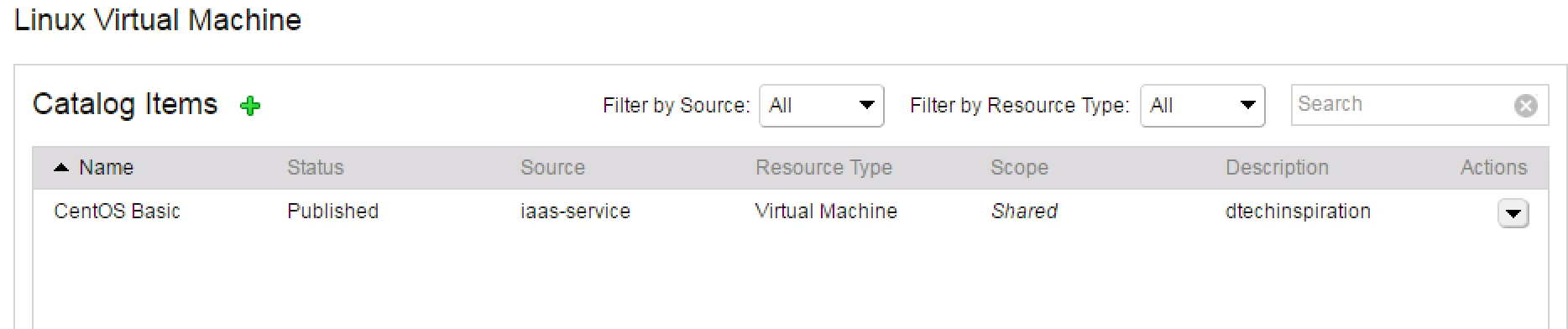

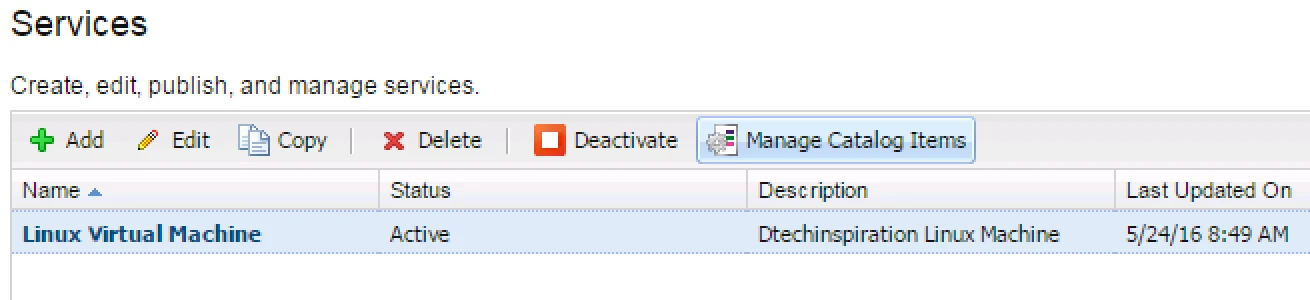

Once you click on Manage Catalog Items it will give you list of Catalog which is created in previous Step, now select the catalog as per name which you are creating.Click Add.

Now You Have to provide Entitlement: Entitlements determine which users or groups can request catalog items or perform specific actions.

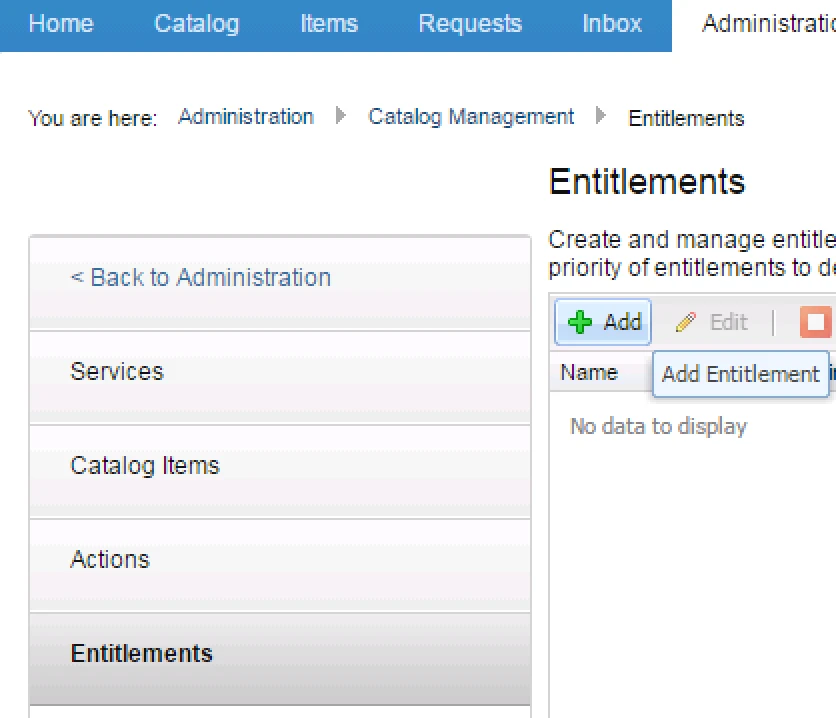

Click on Entitlements > Click Add

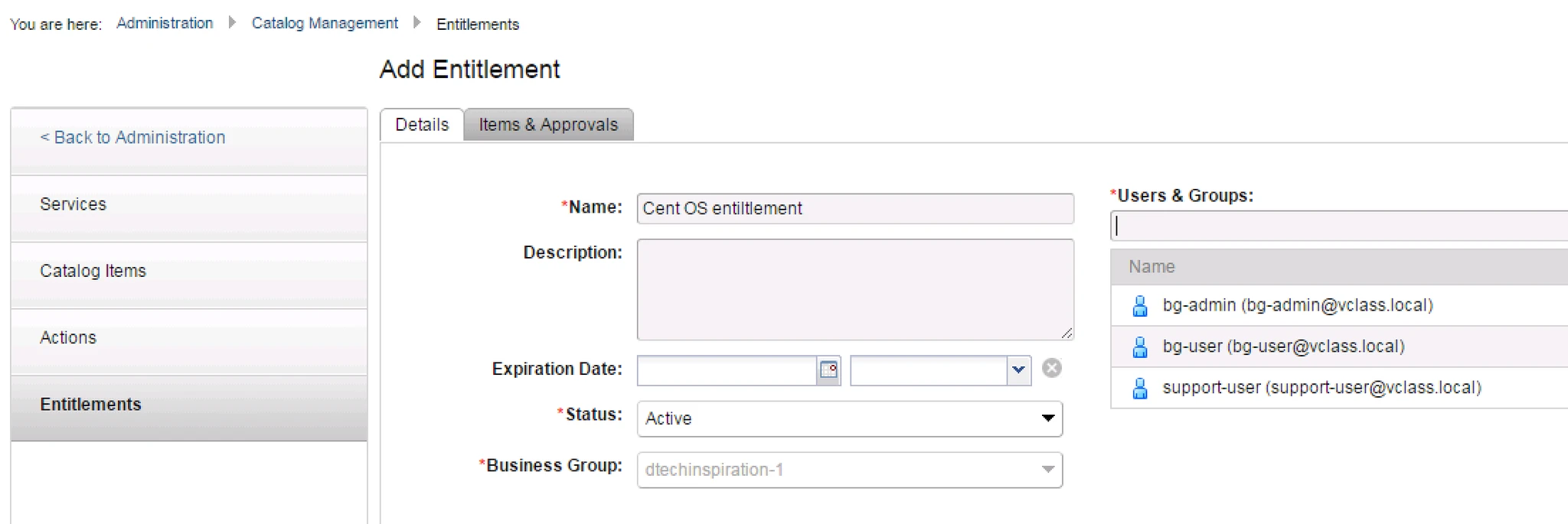

Once you click on Add Entitlement > you will get two tabs

a). Details
b). Items & Approvals

In Details : Provide Name, Description Expiration Date.
**Note: Make Sure Make the Status Active.

And Here you have to Provide Who can manage: In Users & Groups mention the Group or User name

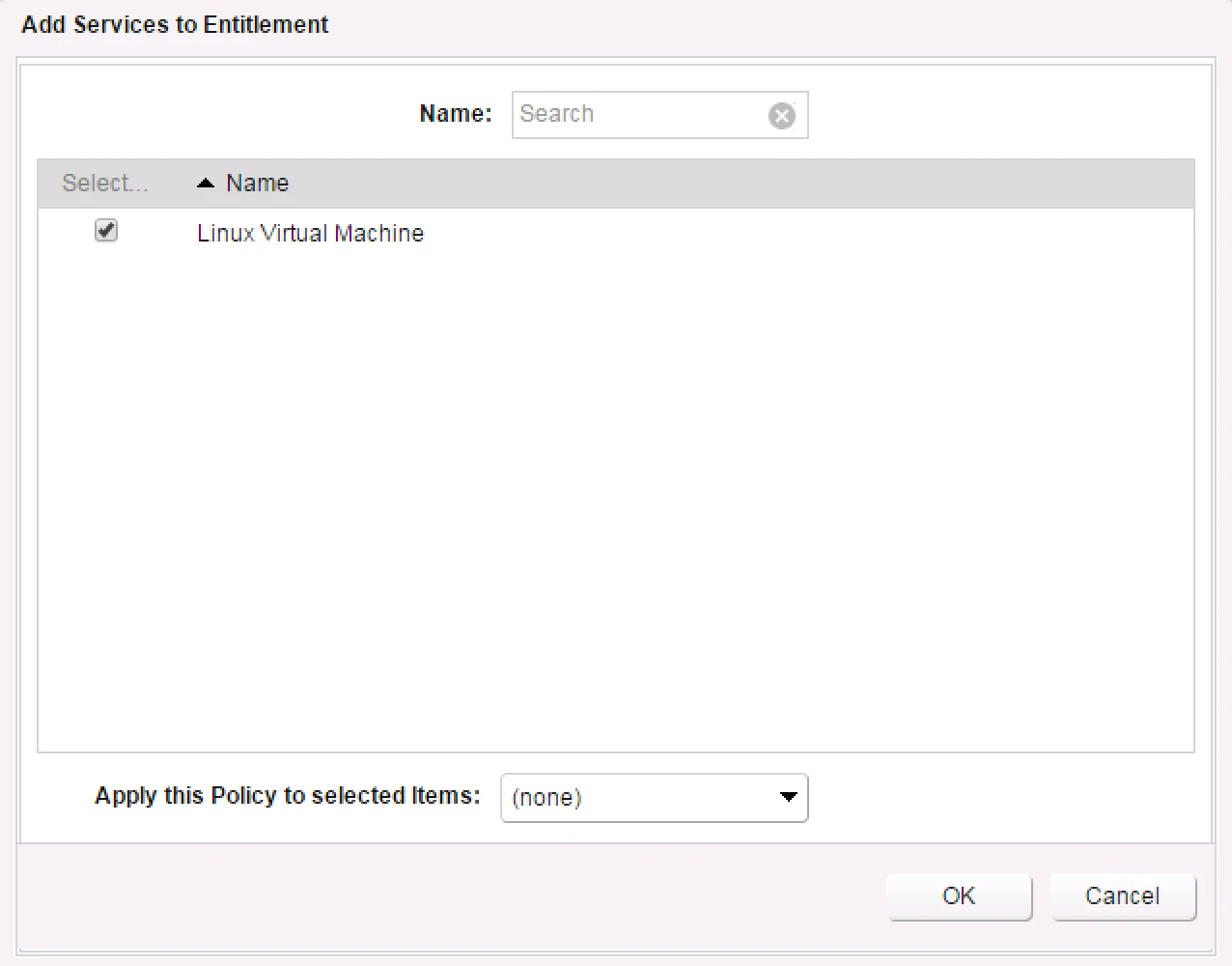

Add Service to this Entitlement.

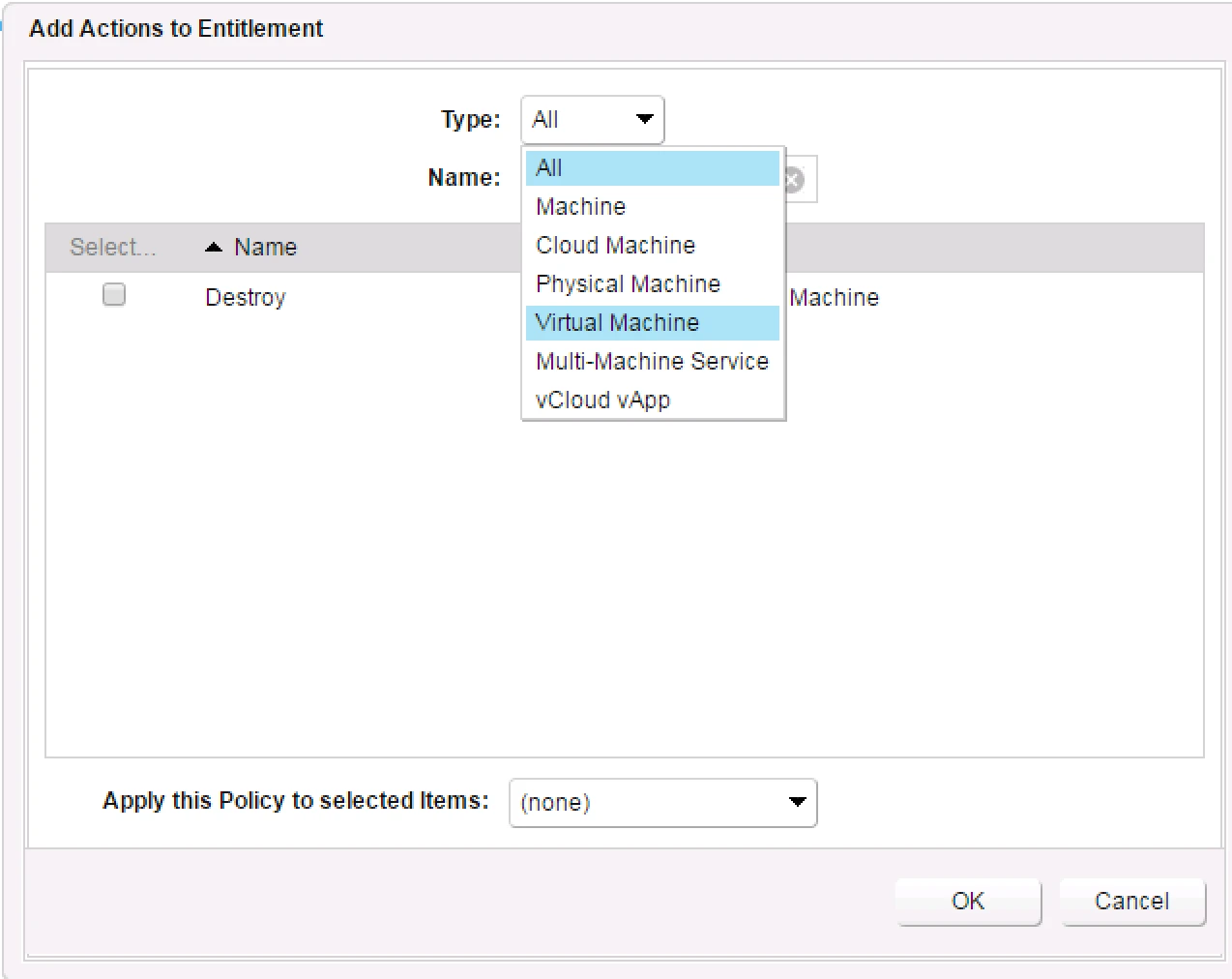

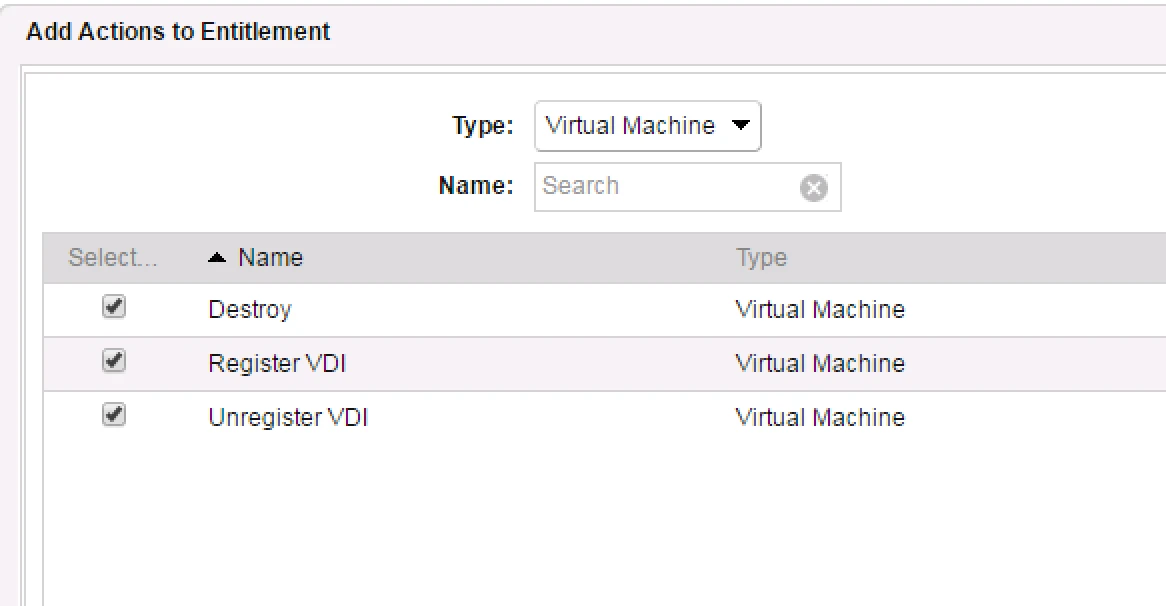

Now Action Time What Roles and Permission you want to allow like Machine, Virtual Machine, Cloud Machine etc

Under all these Types multiple roles mentioned like :

Destroy
Create
Register
Delete
Snapshot etc…


Now you are done the Service and Entitlement.

0

VMware vRealize Automation: Blueprint

What is Blueprint in vRealize Automation.

Blueprint is a method for Machine Procurement. User doesn’t know what is happening at background, what command is running and all those we are hiding the Complexity and providing a Interface from where User just need to provide Basic Details like RAM, CPU etc.

BluePrint is used for Provisioning a Machine either from Cloud Amazon, Air, Openstack etc. or from physical or virtual ( vCenter ).

IF you are working in a organisation and there users required multiple OS and they are working with multiple flavour like Windows, CentOS, Ubuntu, Linux etc to fulfil the requirement they need virtual machine for the same.
How they can request their own choice of virtual machine. they don’t know who to create VM. here VRA blueprint help them. they just need to select the Blueprint as per the requirement and provide basic details and done.
There Machine will be ready in few mints.

Types of Blueprint: Single Machine and Multi-Machine.

Now Let’s see how to create Blueprint.

1. Login into VRA http://IP-or_FQDN/vcac
User name is : tenant-admin@vclass.local

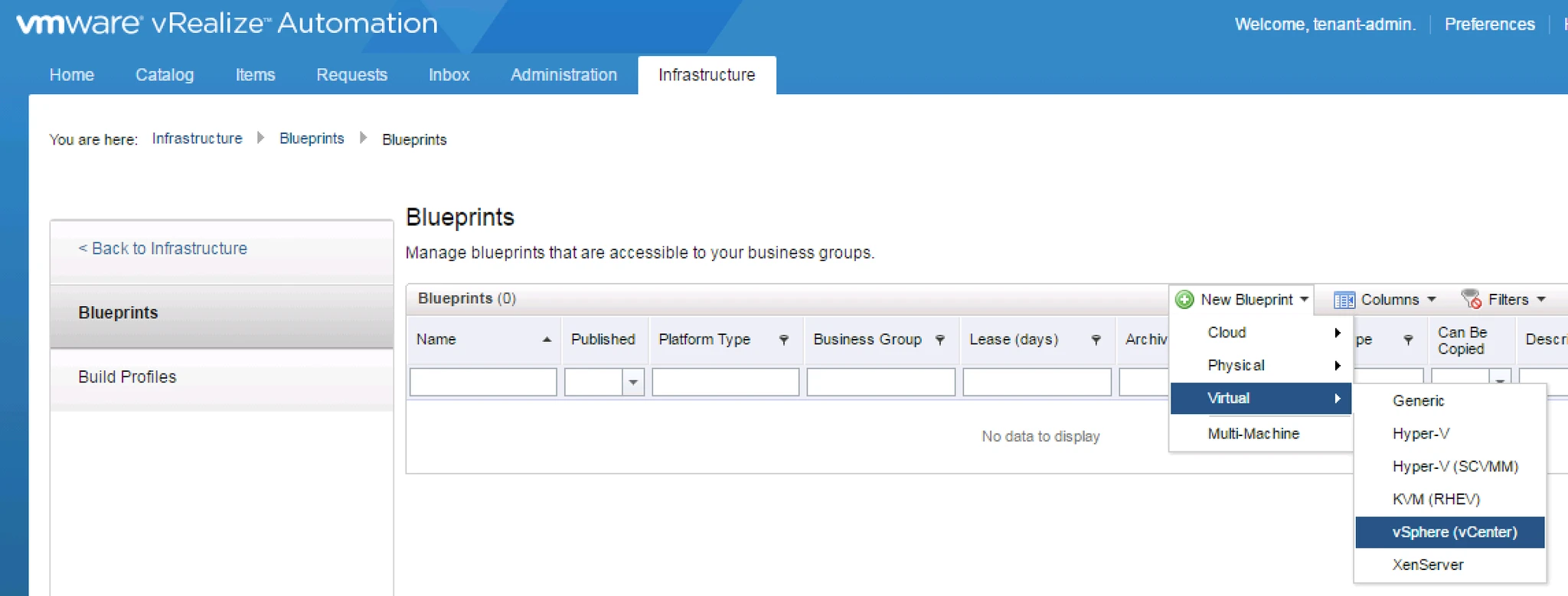

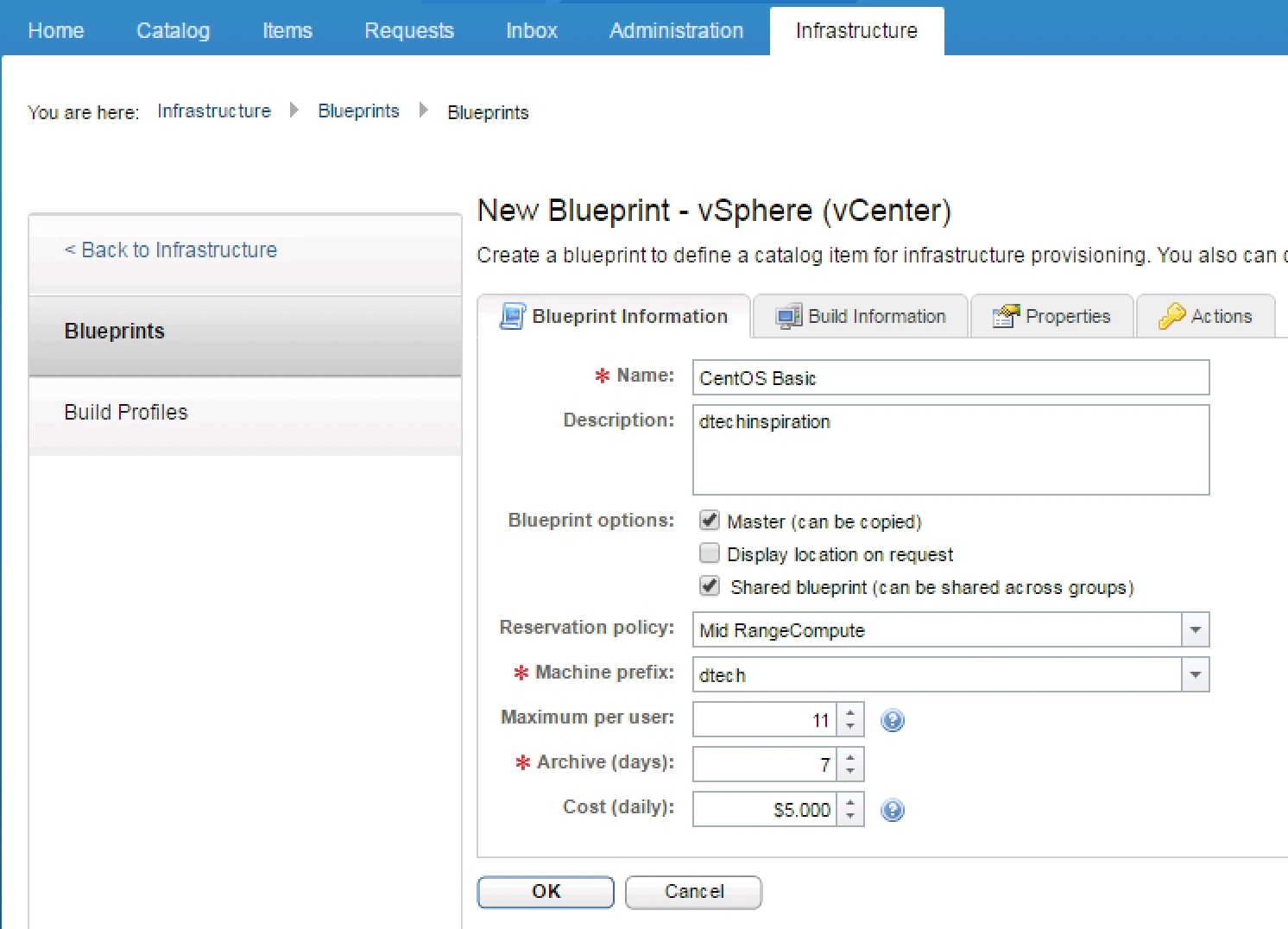

2. Go to Infrastructure tab > Blueprints > on R.H.S click on New Blueprint > under Virtual vSphere (vCenter)


Here you will get Four Tabs > Blueprint Information

a). Under Blueprint Information you have to provide Basic details like > Name & Description.
b). Blueprint options Select Master ( can be copied ) Select Shared blueprint (can be shared across groups)
c). Select Reservation Policy
d). Machine Prefix
e). Maximum per User
f). Archive (days) and
g). Cost (daily)


Second Tab:

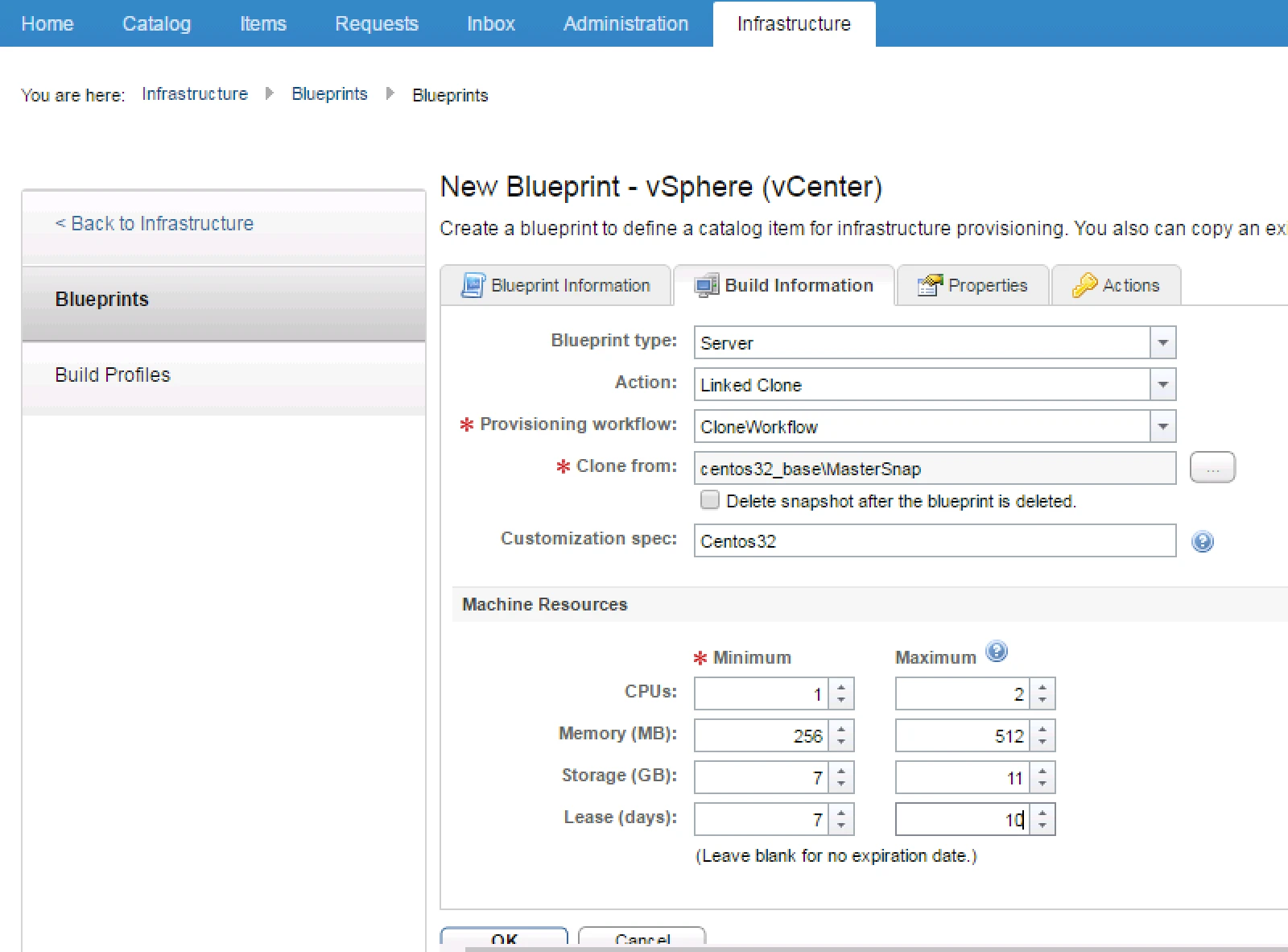

Under Build Information
a). Select Server from dropdown
b). Action > it could be Create, Clone, Linked Clone etc

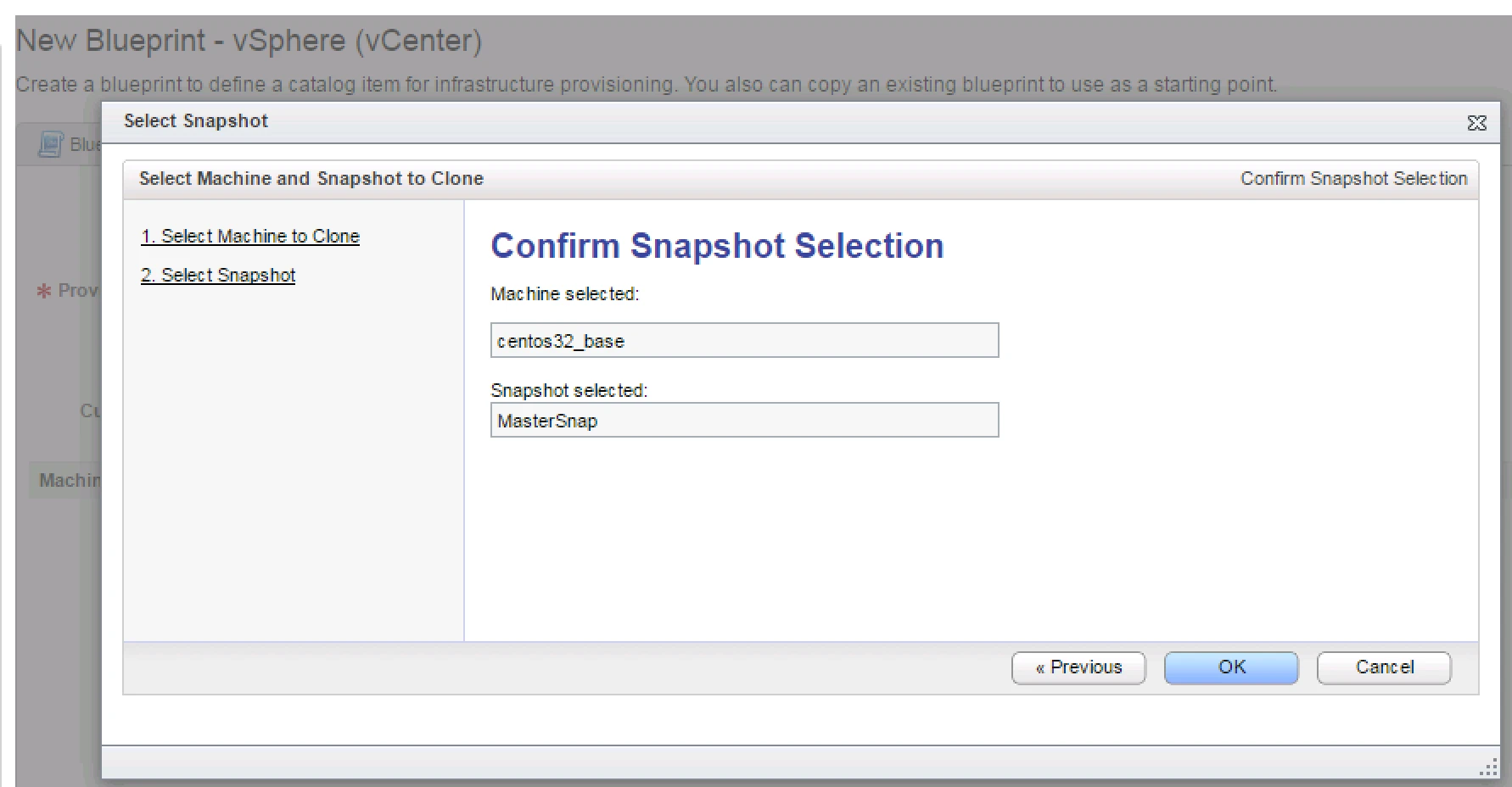

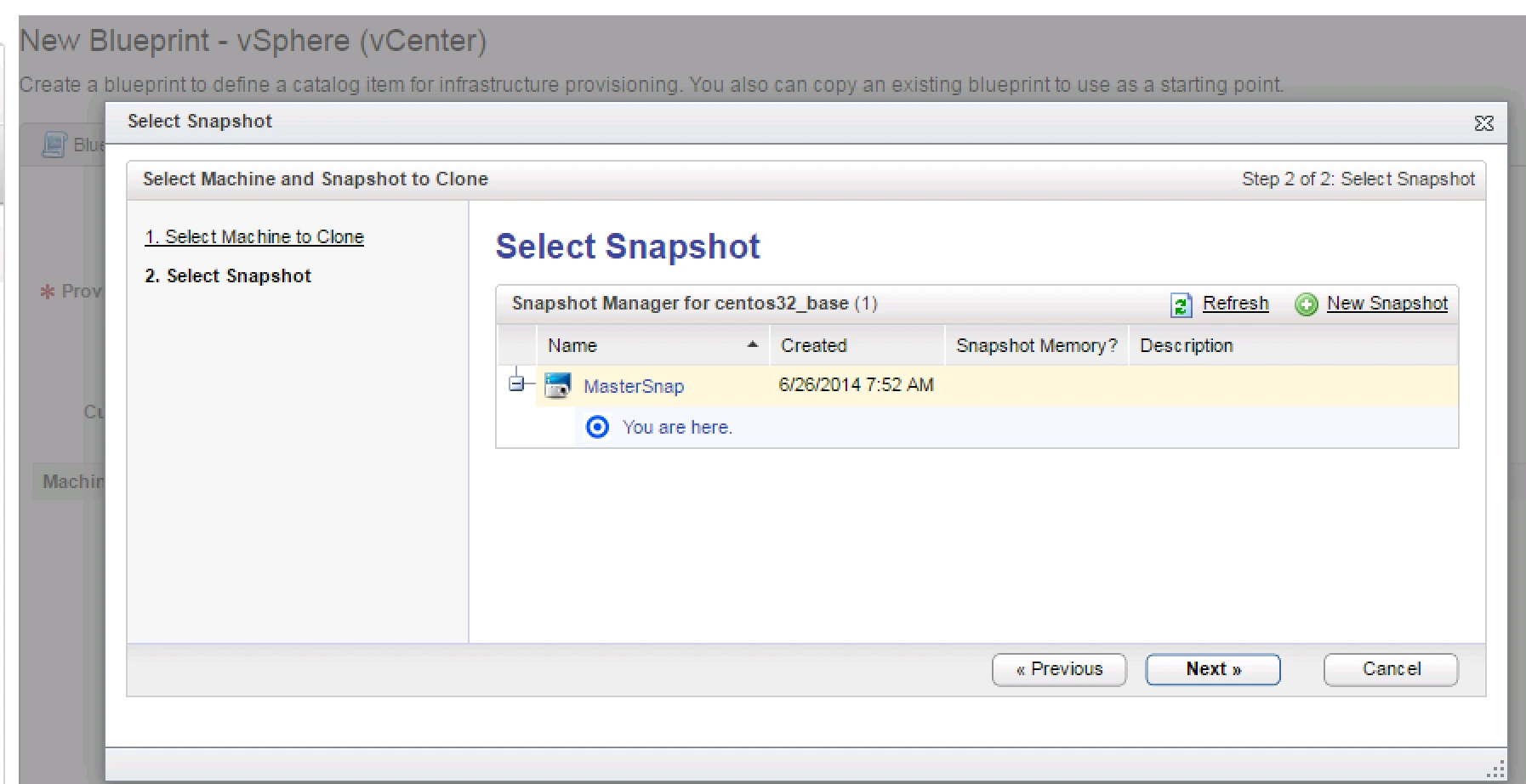

c). Now select from where you want to clone Clone From : OS need to select.
d). Customization spec





Third Tab:
Properties

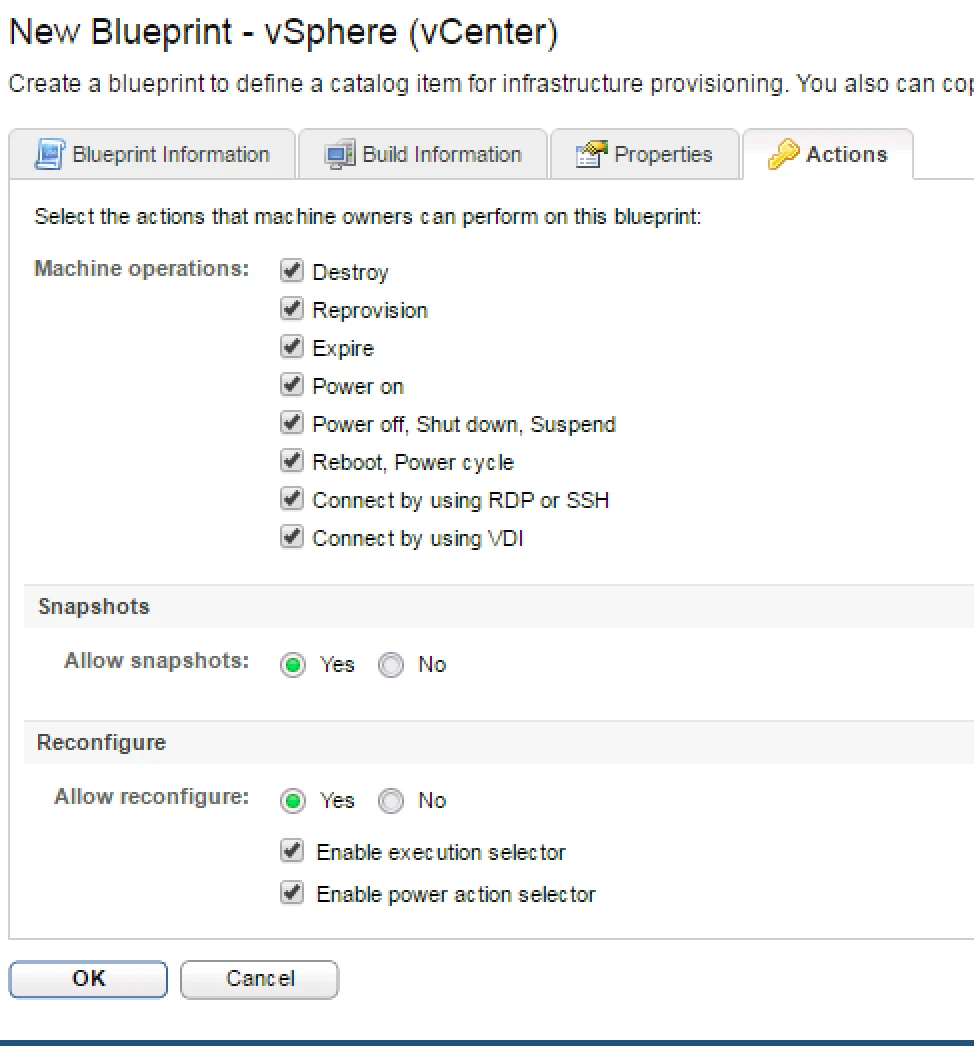

Fourth Tab:

Actions:
under This you can set
a). Machine Operations like Destroy, Expire, Power on etc and
b). Snapshot is allowed or not.
c). Reconfigure: Allow reconfigure Yes or No

You Can Create Blueprint like CentOS, Windows-OS, Linux-OS and Multi-Machine.

Within Single Blueprint you can merge multiple Blueprint. From where you can create multiple Machine.

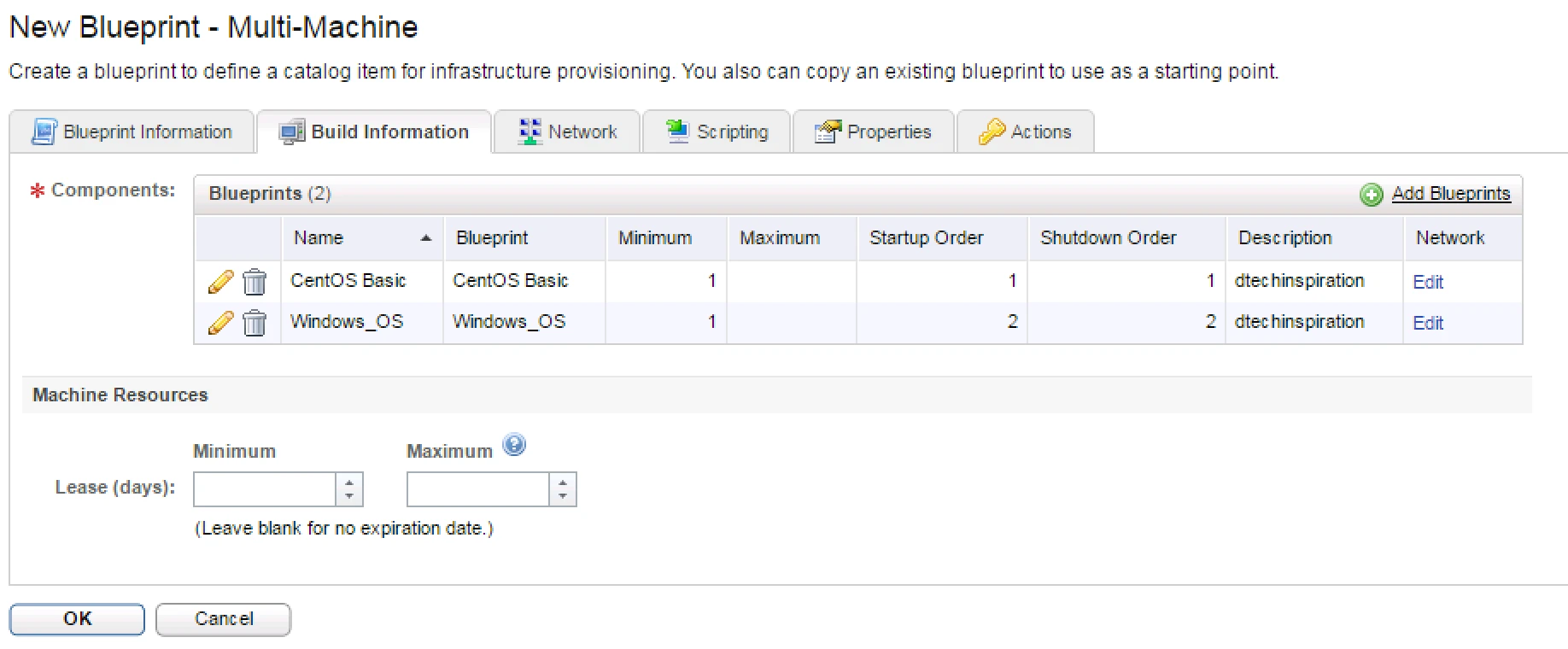

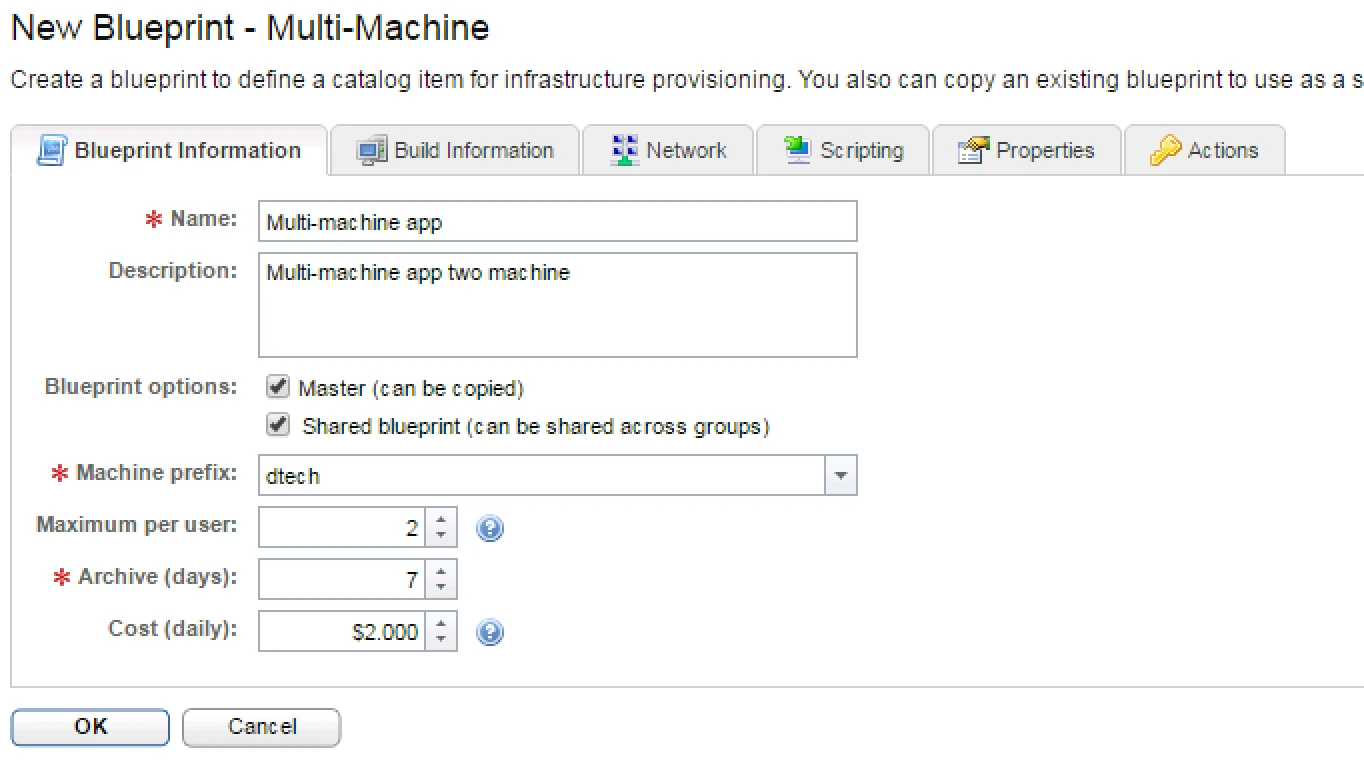

Go to New Blueprint – Multi-Machine >
a). Provide Name
b). Description
c).Blueprint options
d). Machine Prefix


From Second Tab: Build Information

a). Click Add Blueprints > select Cent_OS and Windows_OS

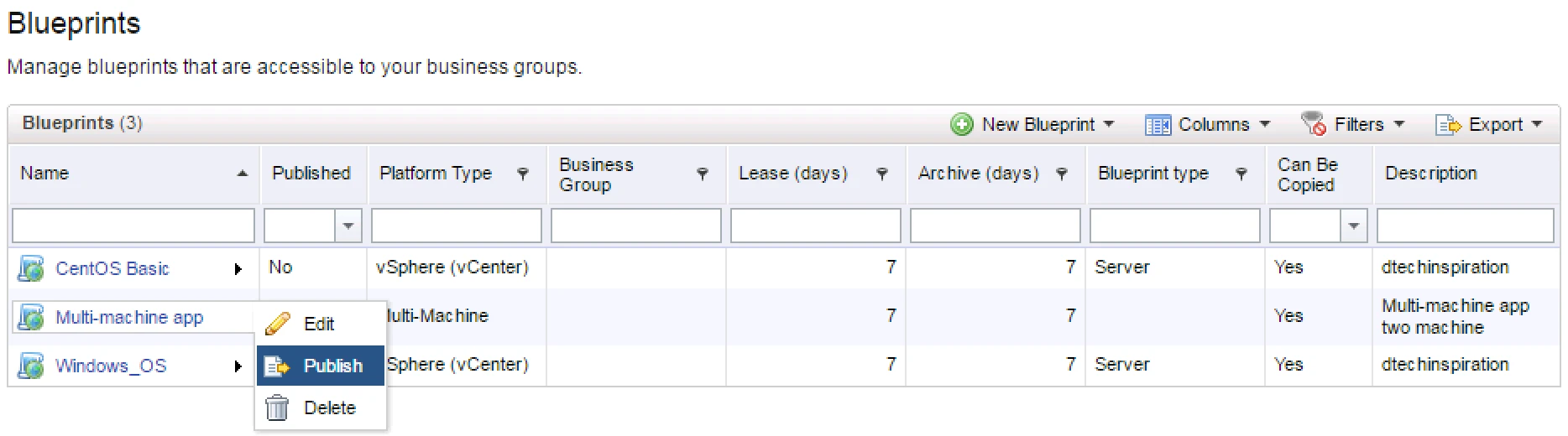

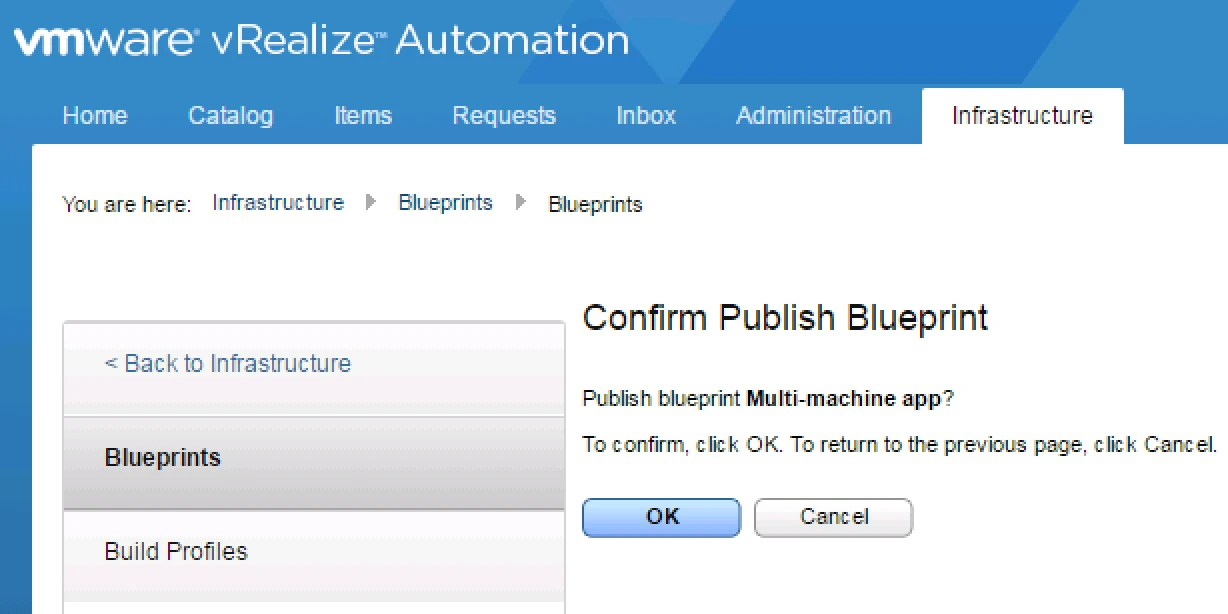

**Note: Don’t forget to Publish the Blueprint after creation otherwise it will not be visible.

0

Virtualization The Future: VMware vRealize…

Virtualization The Future: #VMware vRealize Automation 7.x User Roles

Virtualization The Future: VMware vRealize…

Roles consist of a set of privileges that can be associated with users to determine what tasks they can perform. Based on their responsibilities, individuals might have one or more roles associated with their user account.


VMware Social Media Advocacy

0

Virtualization The Future: vRA Product Goal

Virtualization The Future: vRA Product Goal

Virtualization The Future: vRA Product Goal

Most of time question from the Administrators is “This Product is has many things to configure and manage and automation tools are complex to manage” That is true because the goal of automation tools is to shift the complexity from consumer to administrator.


VMware Social Media Advocacy

0

VMware vRealize Automation: Fabric Layer Configuration

Continuing to Last post we will start configuring VMware vRealize Automation Fabric layer.

What we will do in this task.

1. Create Machine Prefixes: First you have to decide what prefix you will use for the Virtual machine which will be provision via VRA.As per you company Naming Convention or Get This Answer from
Concerned Person.

2. Create Reservation Policies: You Have to create Reservation policy again as per your requirement and if demanded by any customer/support team. Here you have to provide name only.
like Production-SAP-Server-Reservation, Test-SQL-Server-Reservation etc.

3. Create a Network Policy: This is important here you have to Create Network policy and Provide Justified Name with IP Details. here you have to provide multiple details regarding Network like you
want to use External Network,NAT, Private etc.so we will see how to create and use
IP range for Servers.

4. Create a Business Group: Business Group is used to assocate services and resouces to a group of users.Here you have to define AD OU details also users details who can access and done
editing. Here reservation applied

5. Create a Reservation: If you are aware of vSphere Concept there we are creating reservation for VM’s or Creating Resource Pool so that group of VM’s can consume that much Compute Capacity. Here are
also doing same thing we are creating Reservation so that Business Group can consume
the same. We are doing Reservation in terms of Compute (RAM and CPU) and Storage.

**Note: Here you can also define Machine Quota How much machine you can create.

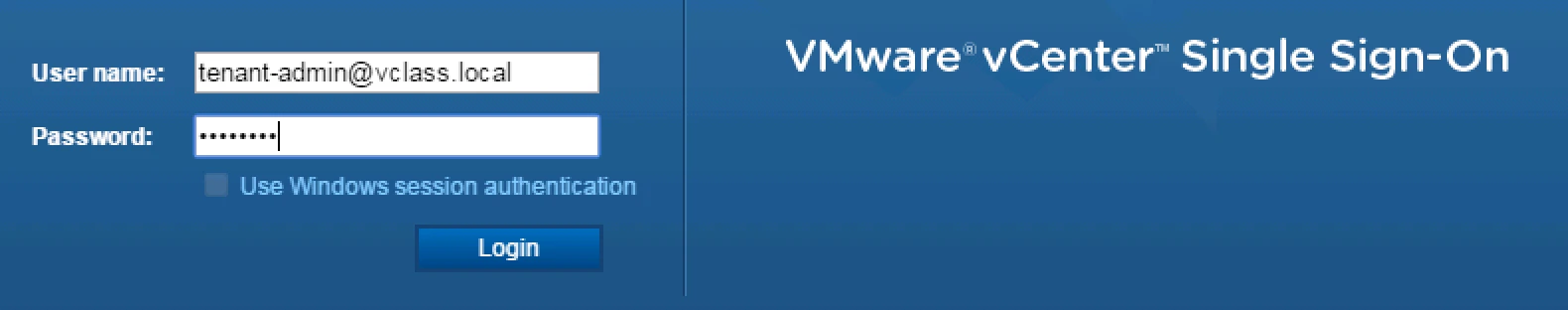

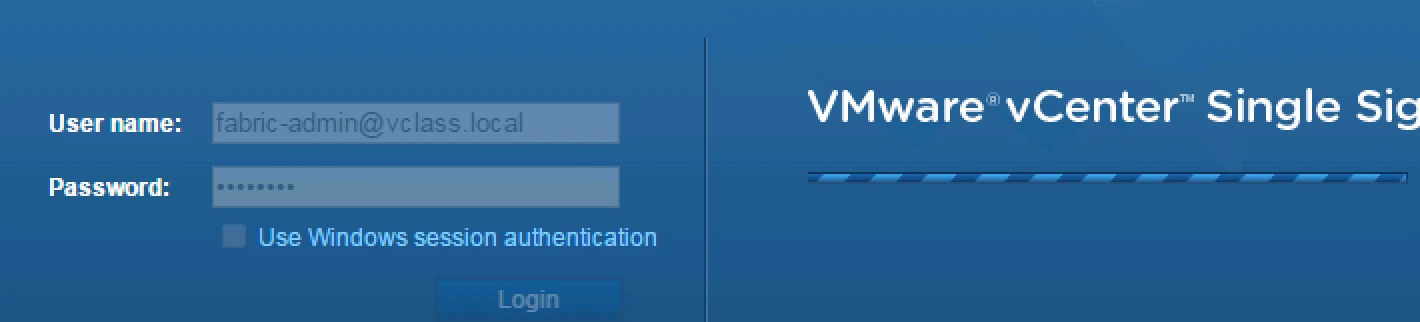

First you have to login with Correct User to perform these task. User is : fabric-admin@vclass.local.

1. Url remain Same http://IP-or-FQDN/vcac

2. After login you will see Goals on the left hand side.there you have to select Create Machine Prefixes.

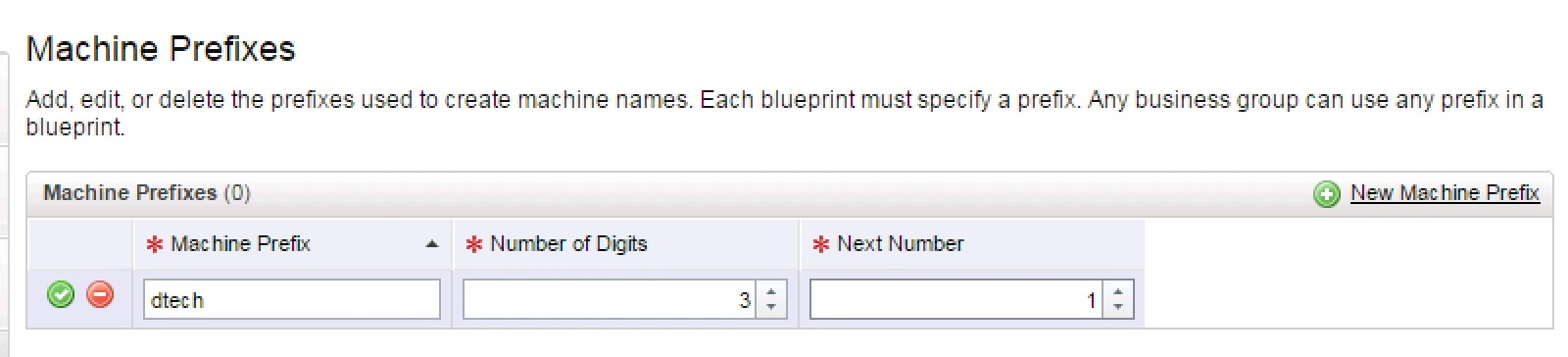

3. Here you have to create Machine Prefixes > First click on the New Machine Prefix ( on the very Right hand side ). after that it will ask you to provide few details like Machine Prefix, Number of Digits and Next Number for your Virtual Machine.


4. Now You Are done with First Step Proceed to Next Step which is Reservation Policy.

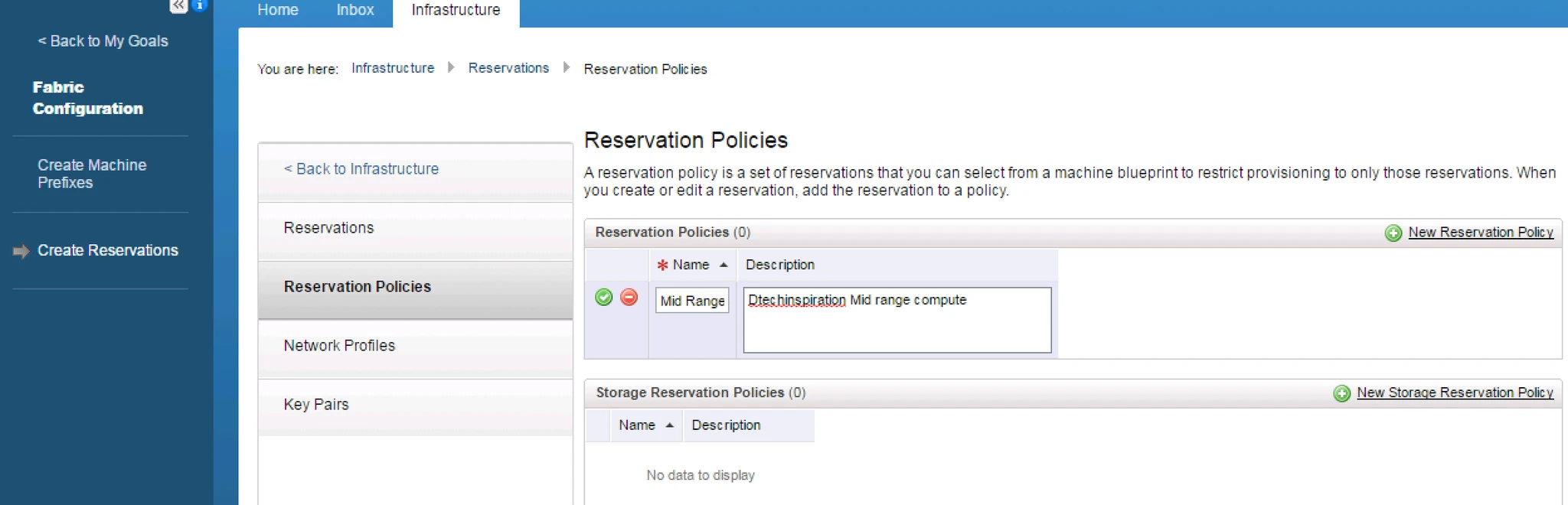

Under the same Goal Click Create Reservation.> First on the Very Right hand side click New Reservation Policy.

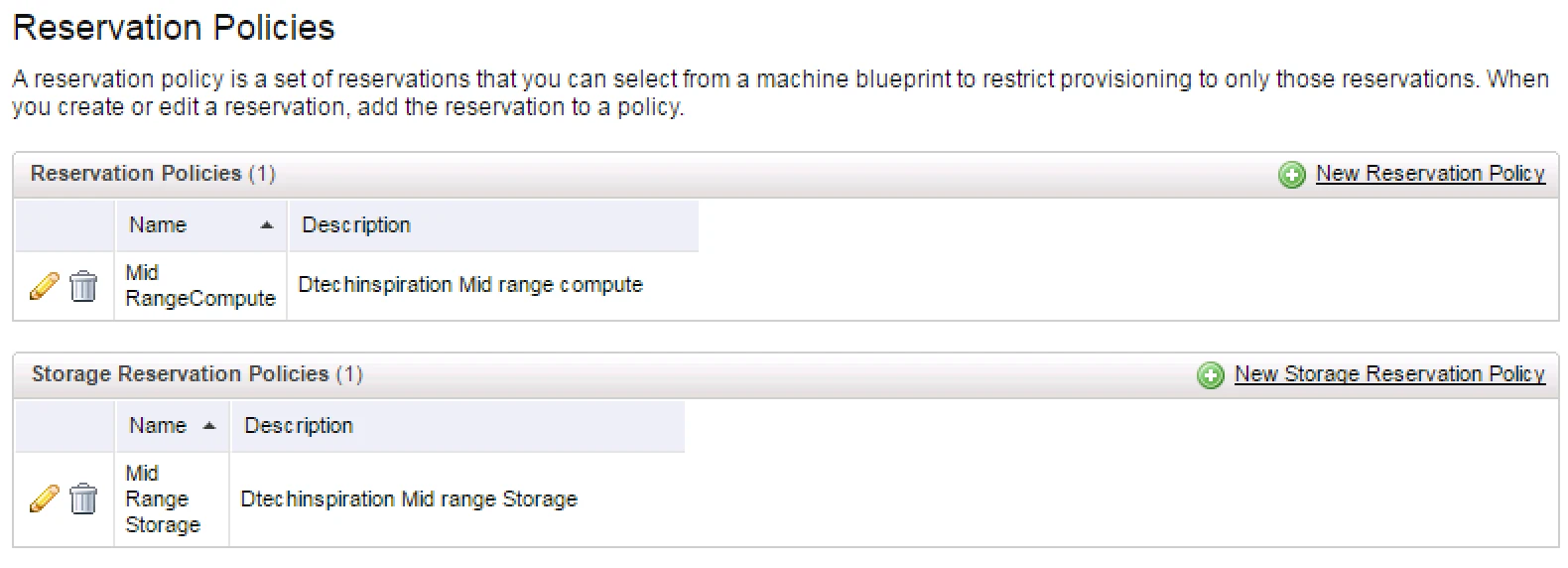

Here you have to provide Name for this Policy like Mid Range, SAP, Oracle etc. Also description so that other Admin can understand the purpose of this policy. Under this option you are also allowed to create Storage policy as-well.

Now Second Step is completed.

Third Step Creating Network Policy here you have to provide multiple details

5. Under the hood of Reservation you see this option. Network Profiles

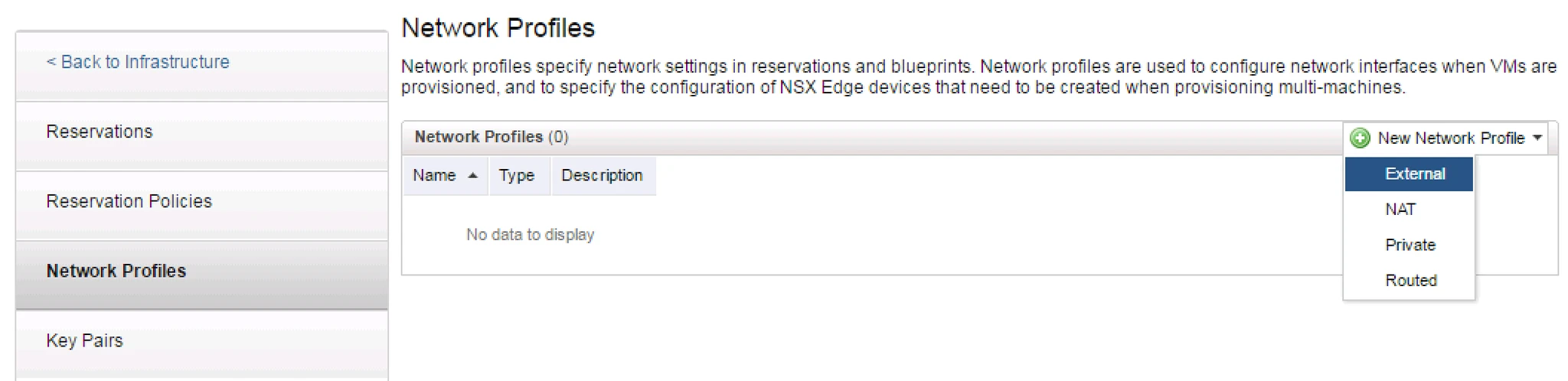

Click Network Profiles : you will get an option to create network profile : on the right hand side > New Network Profile > here you have multiple option to choose. Like External, NAT, Private, Routed

In My case i will use External Network

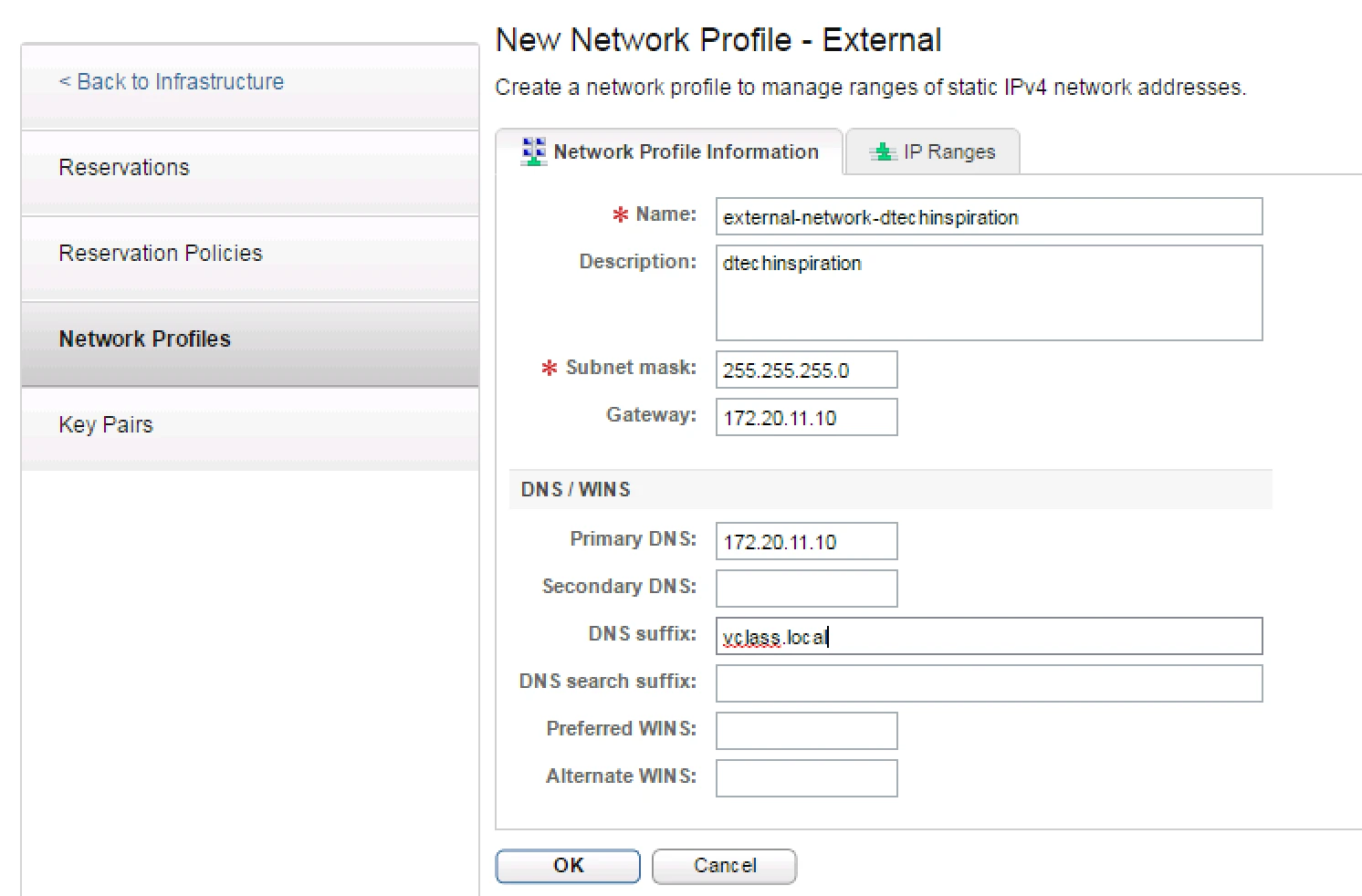

Here you have two Tabs First one is Network Profile Information and Second one is IP Range.

A) First Tab:
You have to provide Name and Description, after that required field is Subnet which you want to use along with Gateway.Primary DNS and DNS suffix in which domain it will search etc

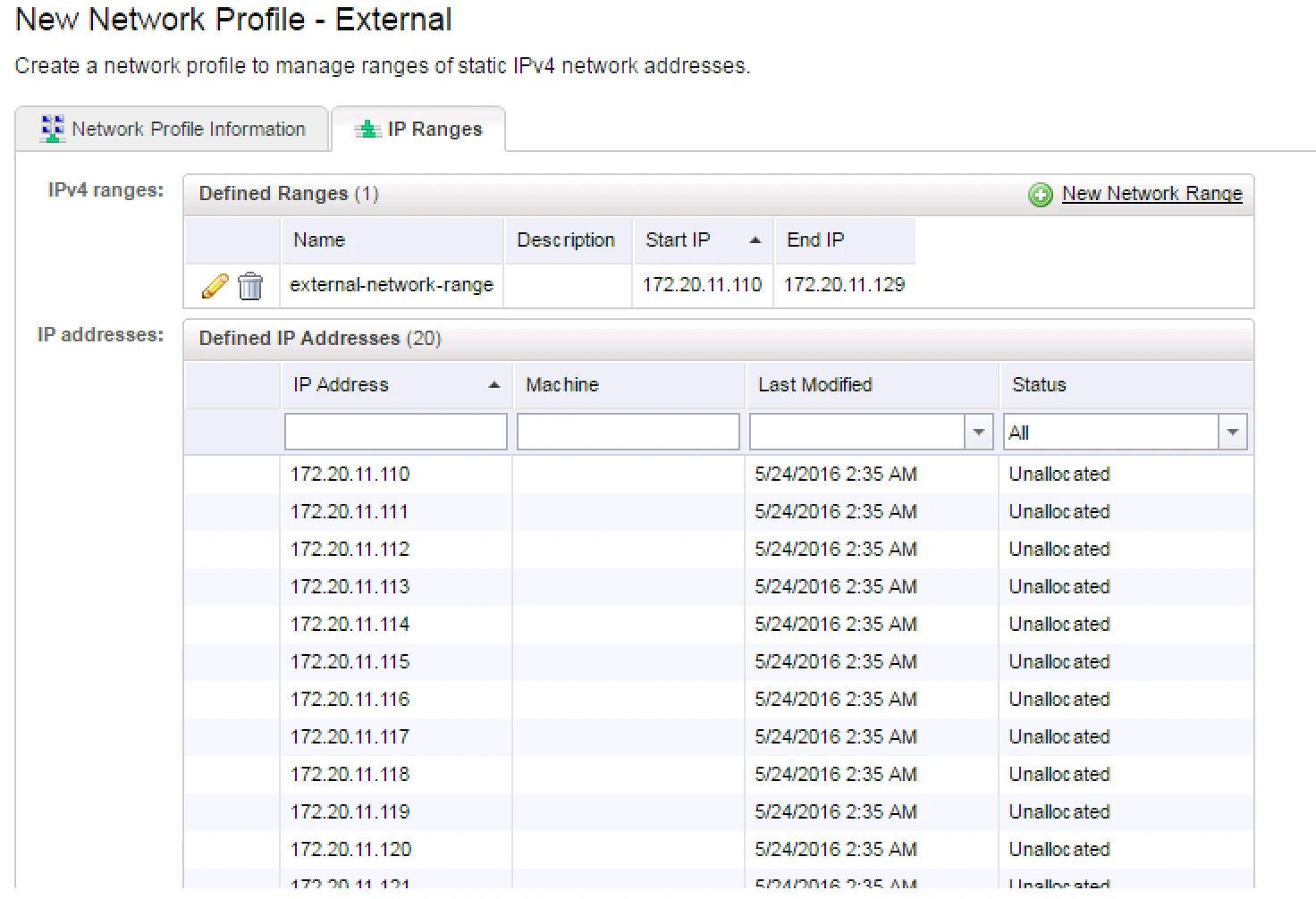

B) Second Tab: Click on New Network Range and provide Start and End IP. for this details you have to talk to your network admin.After providing Network details it will give the list of IP also let you know which ip is Allocated or unallocated.

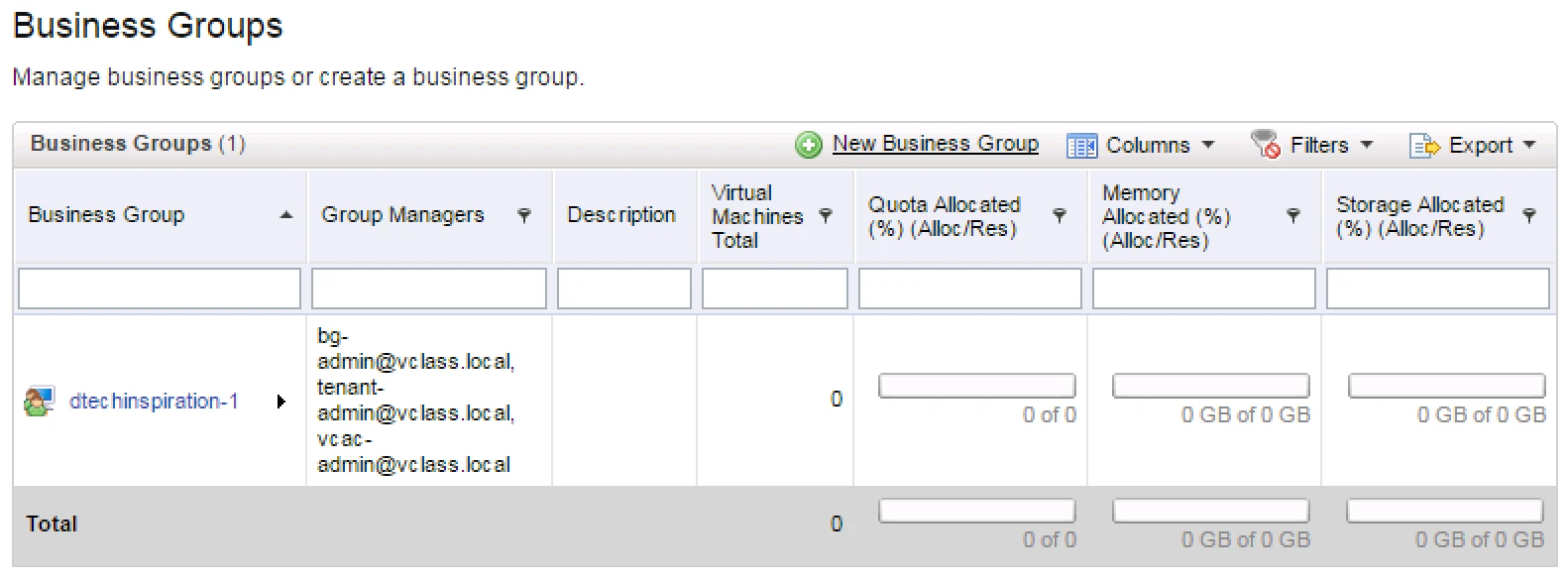

6. Now it’s time to Crate Business Group. For that you have to login via tenant-admin@vclass.local

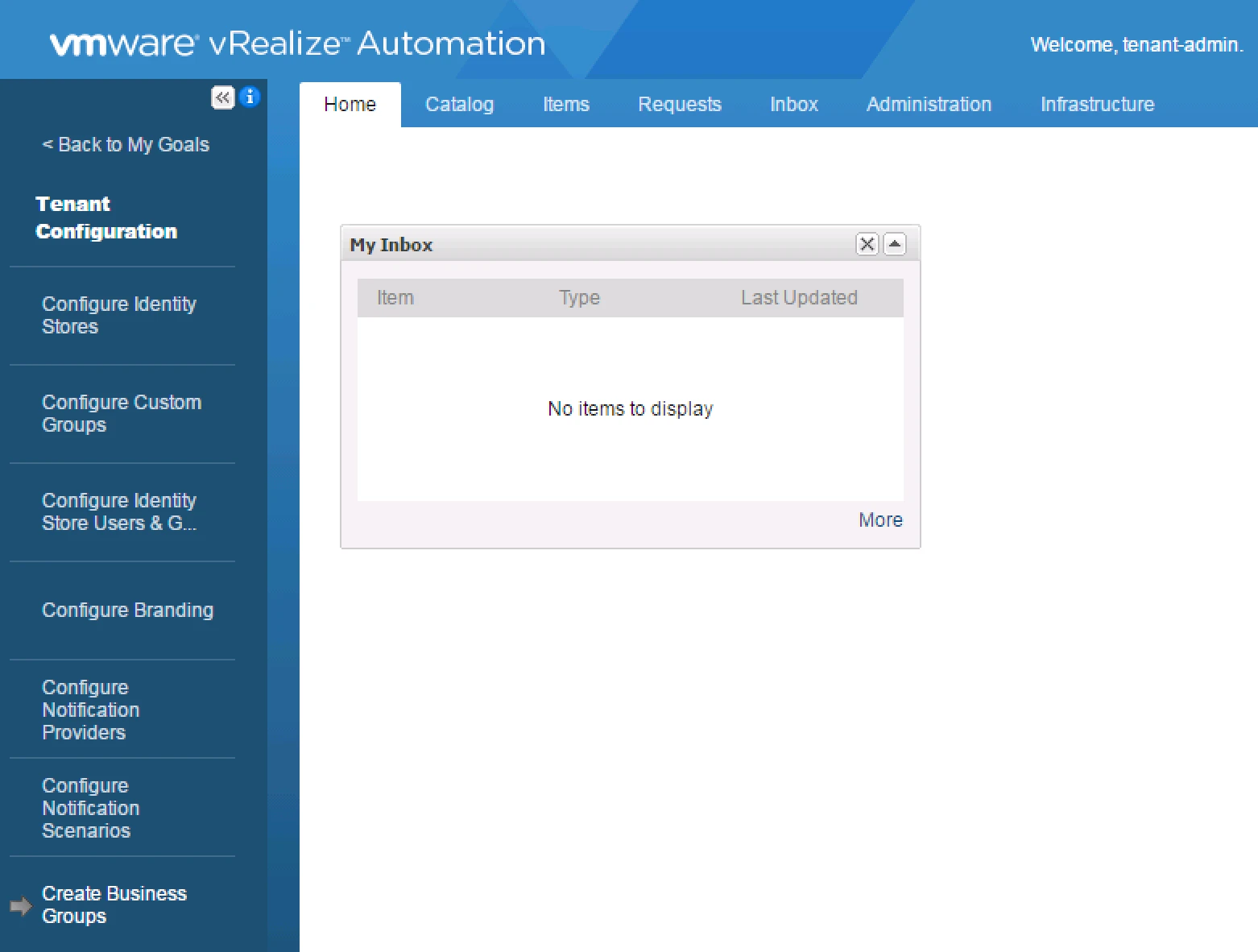

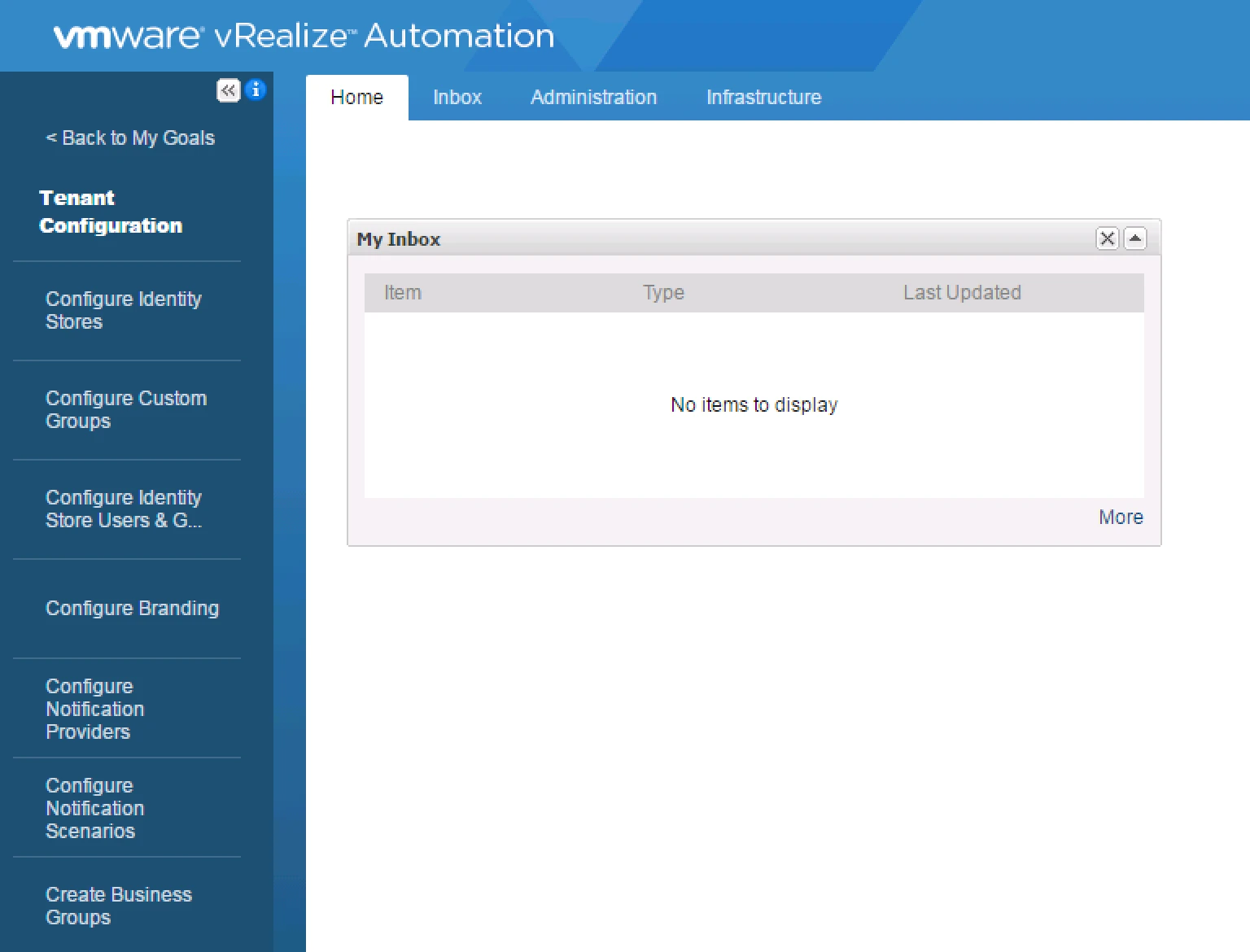

After login you will see Goals on the left hand side.there you have to select Create Business Group.

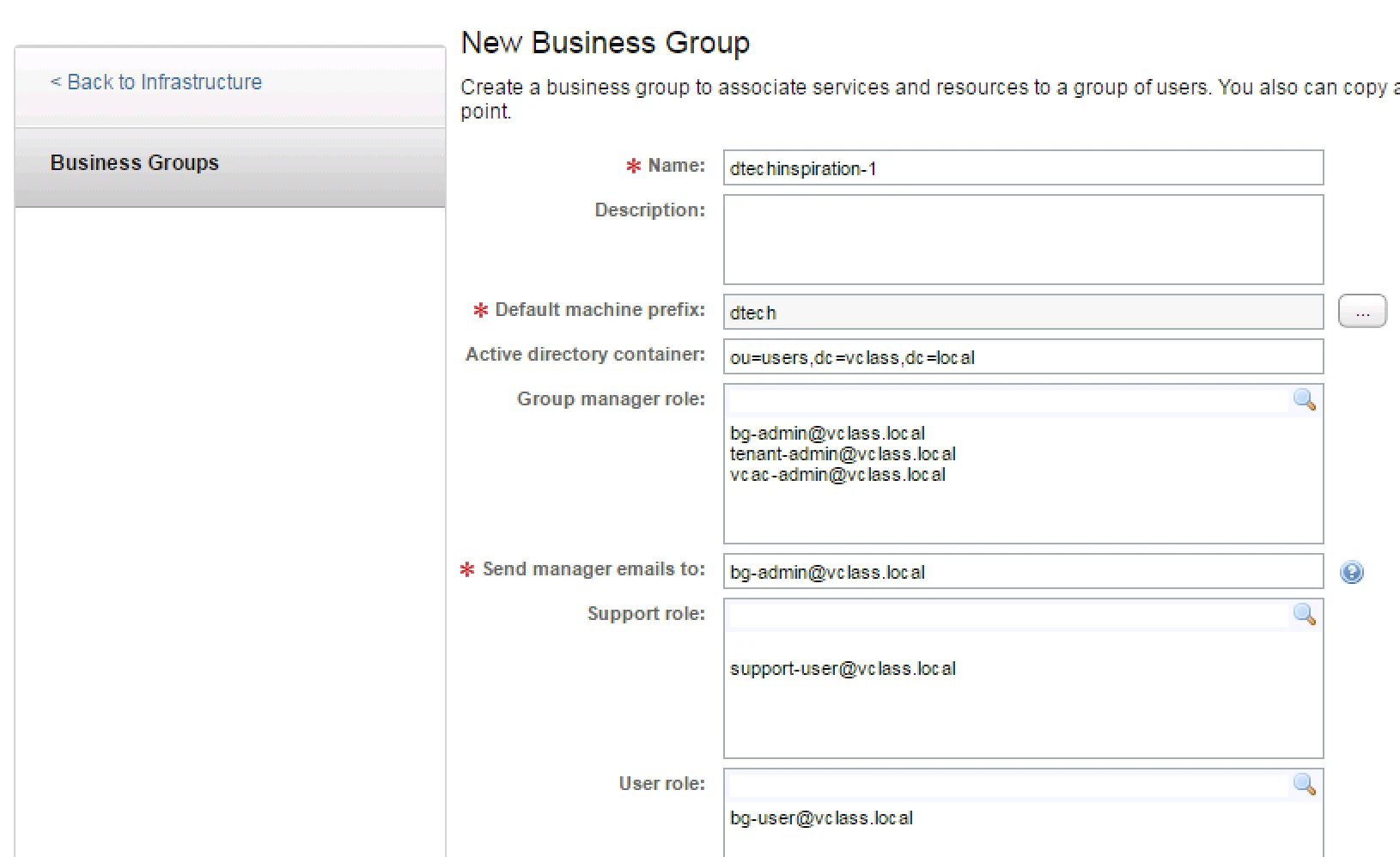

7. Once you click on Create Business Group You have to fill the given form like Name of Business Group with Description, Default Machine Prefix wich it will use while creating Machine. Group Manager role to whom you want to assign this role and Email id to send manager email. Also Support Role with User role you can define.

Now Final Step is Creating Reservation so that Business Group can use.
Go Back and login with Fabric-admin@vclass.local and go to Reservation option and create one.

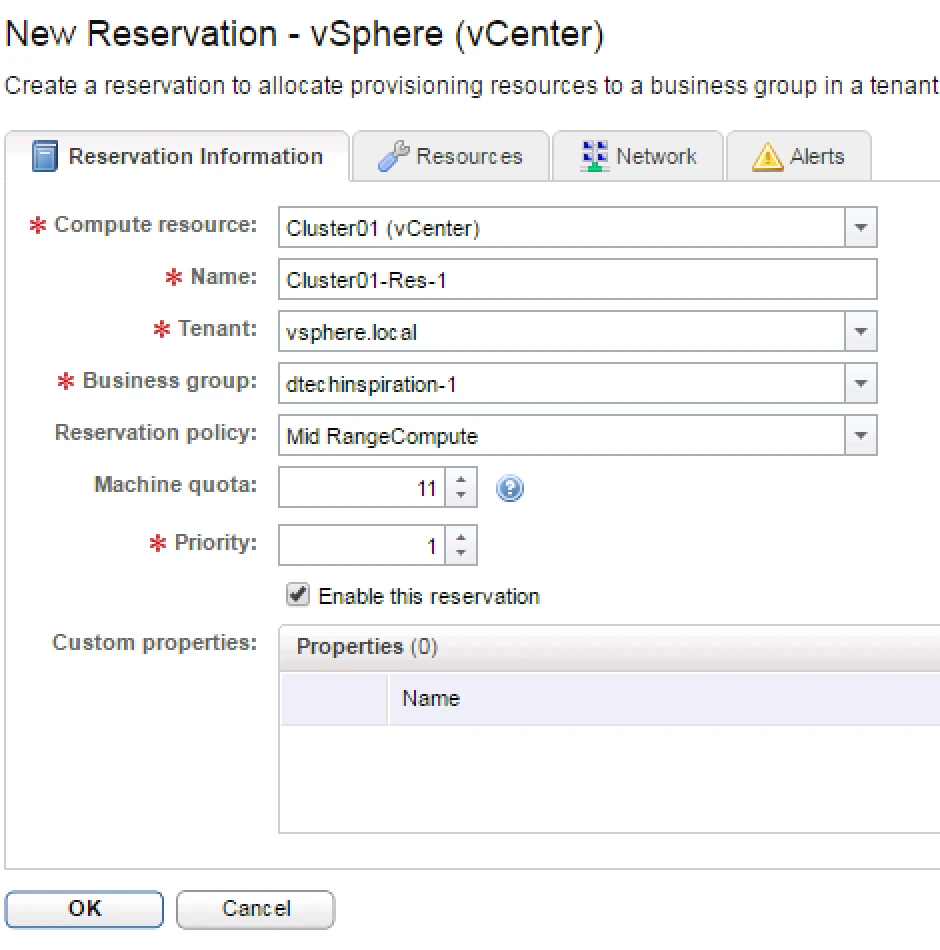

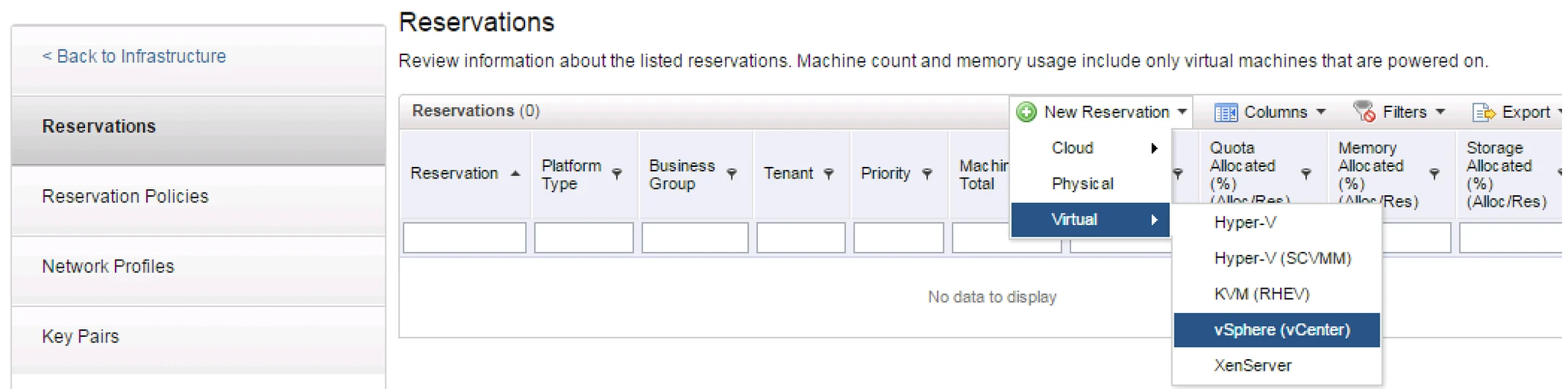

Here click on New Reservation and Select Virtual under the hood you will get multiple option select vSphere (vCenter)



Here you will get Four Tab

On the Very first tab you have to
a). Select Name of Compute Resource from dropdown list (Automatically pick up from vSphere).
b). Name and Tenant ( vsphere.local is our default and only one) from dropdown list.
c). Business Group from dropdown list. ( Created above )
d). Reservation Policy : Created Above
e). Machine Quota: How many machine you can deploy max.
f). Priority : like 1, 2, 3…

** Note: Don’t forget to Enable this Reservation.

Second Tab:

Resources: Here you can define the number for Physcial RAM and Storage capacity will be reserved. Also Set the Storage Priority.

Third Tab:

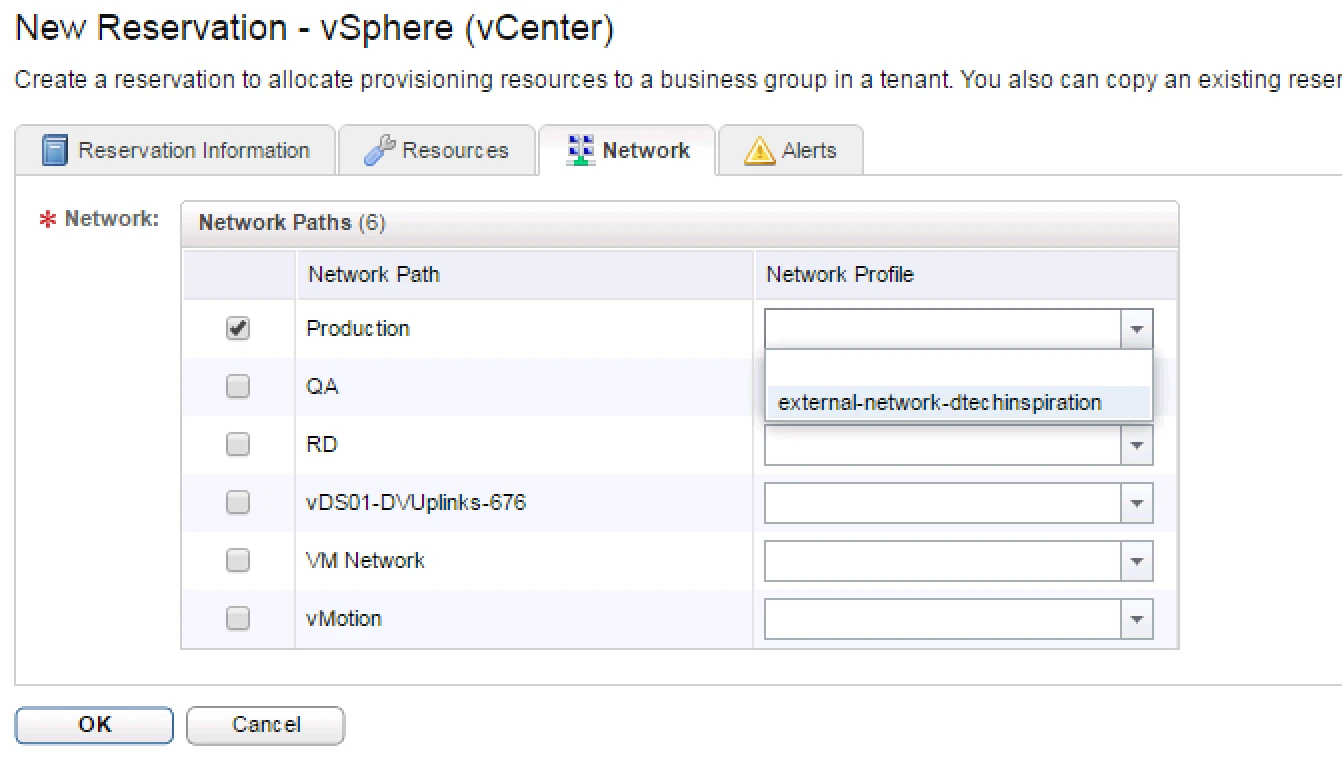

Network: Here Network Path will be automatically populated need to select Network Profile which was created in above step.


Fourth Tab:
Alert: if any.

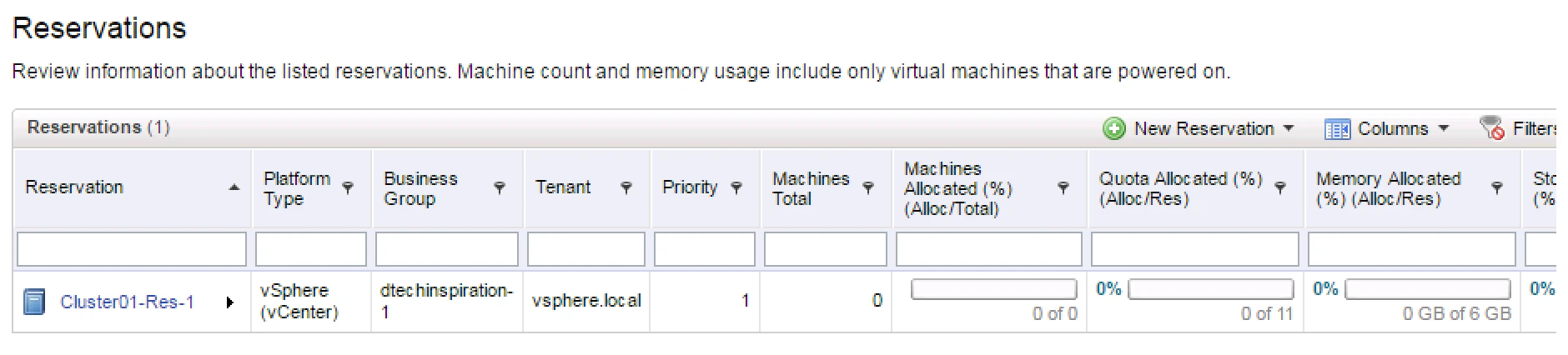

And here is your reservation.


And You are done with All the steps.
